SolderKing SAC0307 Pellets 1kg High Purity
SolderKing SAC0307 Pellets 1kg High Purity
This item is shipped directly from the manufacturer therefore is not eligible for free delivery.

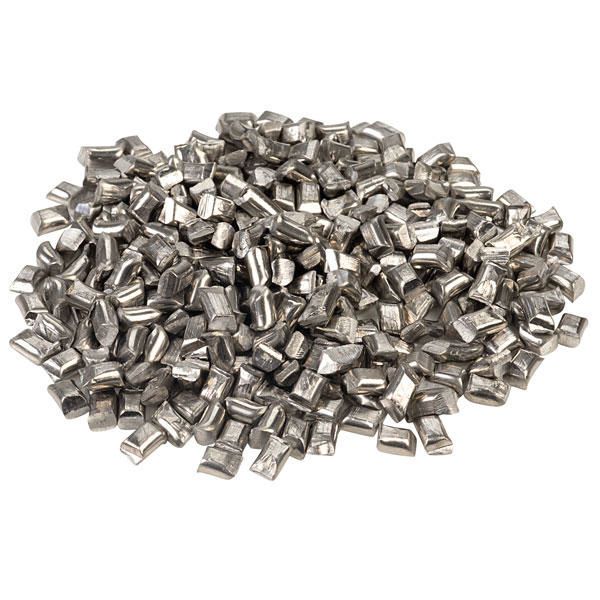

High Purity Solder Pellets
Alloy - Sn99.3Cu0.5Ag0.3
Melting Point - 217ºC
SAC0307 is manufactured using only high purity virgin materials which results in a low drossing, fast wetting solder.
The liquidus temperature is 227°C and has a recommended temperature range of 260-265°C.
SAC0307 solder alloy is compatible with all major brands of no clean and water soluble electronic grade fluxes.
SolderKing SAC0307 exceeds the requirements of IPC J-STD-006C.
SAC0307 is available as Pellets, Bar Solder and Solder Wire.
Benefits
- Low Cost, Sn-Ag-Cu Solder Alloy
- Fast Wetting Similar to SAC305
- Exceptional Through-Hole Penetration
- Manufactured to J-STD-006C
- RoHS and REACH Compliant
- Suitable for Wave, Selective, Dipping and Hand Soldering
*picture may not be of actual product.
