Superform/AF – Component Former & Cutter – 0.5-0.8mm Axial Components
Superform/AF – Former & Cutter For Axial Components – Lead Diameters 0.5-0.8mm

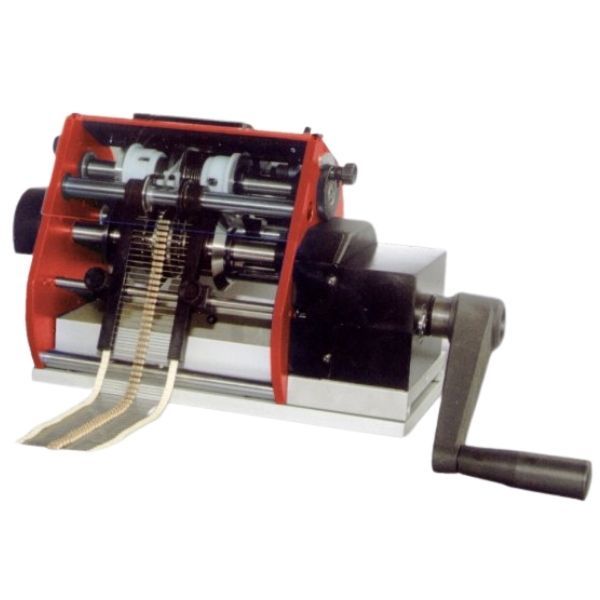

This machine is designed for the cutting, bending, and preforming of axial components. The Superform/AF is an innovative preforming system that is fully mechanical. This allows the rotation of the central feed to stop whilst the preforming assemblies grip and preform the leads to the chosen die.
The components are cut and then “U bent” to the dimensions selected. This process is fully adjustable.
Also possible to exclude part of the preforming operation, by only cutting and U-bending the component leads.
Contact our team today for further information or bespoke quoting.
Features Of The Superform/AF
- Fully adjustable cutting and bending parameters
- Many different preforming sets available
- Motor unit available to turn the unit automatic – helping to increase the production rate.
Product Codes For Superform/AF
| Product Codes | Description |
| 7915.095 | Superform/AF Standard, Without Preforming DIe |
| 7915.096 | Superform/AF Reinforced, Without Preforming Die |
| 7915.097 | Superform/AF Extra Reinforced Without Preforming Die |
Accessories For Superform/AF
| Product Codes | Description |
| 7915.185 | Tape Reel Holder Arm BR6 |
| 7915.032 | Motor Unit For Superform/AF, 230V - 50-60Hz |
| 7915.184 | Loose Component Feeder CS40 For Superform/AF |
Available Preforming Dies For Superform/AF (Also See Table Below)
| Product Code | Description |
| 420750 | Stand-Off Preforming Die Assembly, Curl 3mm |
| 420800 | Stand-Off Preforming Die Assembly, Curl 2.5mm |
| 420850 | Stand-Off/Lock-In Pref. Die Assembly (D:0.5-0.8mm) |
| 420900 | Stand-Off/Reduced Pitch Pref. Die Assembly |
| 420950 | Stand-Off/Lock-In Pref. Die Assembly (D:0.6-1mm) |
| 421000 | Body Locked On PCB Preforming Die Assembly |
| 430700 | Stand-Off Preforming Die Assembly (D:1-1.3mm) |
| 430900 | Stand-Off/Reduced Pitch (D:1-1.3mm) |
