Binocular Stereo Zoom Microscope

With an 8:1 zoom ratio, the SX80 provides the ability to inspect components/specimens at low and high magnification in a single system, with the added flexibility of a wide range of options and system configurations.

Building on more than 60 years optical experience, Vision Engineering’s SX80 binocular stereo microscopes deliver high quality, highly versatile stereo viewing, making an ideal choice for users who demand outstanding optics and affordability.

The SX80 has the second highest zoom ratio in the SX family of quality stereo microscopes.


  • 8x – 64x standard magnification range (256x max)
  • High optical quality CMO stereo microscope, designed to be affordable
  • Precision optics deliver high resolution and flat field
  • Long-life true colour LED illumination
  • Long working distance and large depth of field
  • Click-stop zoom indexing
  • Modular system with optional extras for tailored configurations

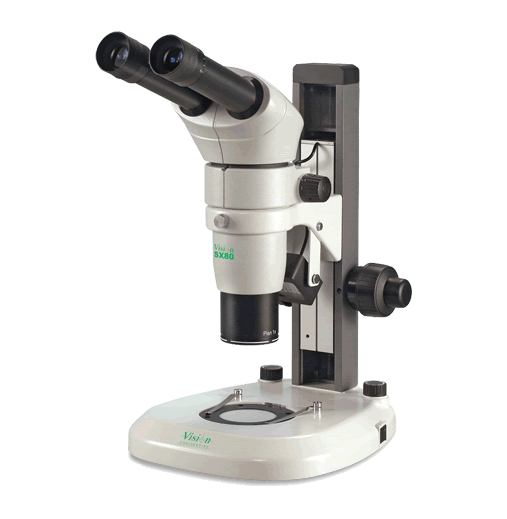

Bench Stand

  • Compact and stable low-profile ergonomic base
  • Integrated focus and fine focus (optional) control
  • Built-in transformer with intensity adjustment for both surface and substage illumination

Boom Mount

  • Ideal for larger specimens
  • Enhanced freedom of movement
  • Stable platform base, or for mounting directly to user’s work surface


Dual Arm Boom

  • Designed specifically for applications requiring extended reach, without compromising stability
  • Easy adjustability allows precise positioning and alignment
  • Stable platform base, or for mounting directly to user’s work surface

A wide range of accessories are available to complement the family of SX binocular and trinocular stereo microscope products.

To discuss your particular requirement in further detail, please contact your local Vision Engineering representative.

Image Capture, Archive & Documentation

  • Photo tube option permits the use of digital or video camera.
  • Modular multimedia solutions are available for image archiving, acquisition, processing, analysis and documentation.
  • Software options include the capabilities for particle analysis and image stitching functions.

LED Ring Light

  • For use with bench stand variant, where additional surface illumination is required (standard option with boom mount and dual arm boom variants).

Floating Stage

  • For use with bench stand models, the floating stage provides smooth sample control, ideal for inspection tasks.

Fine Focus

  • For use with bench stand models, the fine focus option permits ultimate focus control, ideal for higher magnification work.

Polarisation Set

  • Polarising filters can be accommodated with bench stand configurations.

Double Iris Diaphragm

  • Enabling the size of the internal numerical aperture to be changed on both optical paths for greater depth of field throughout the zoom range.

General Specifications

To discuss your particular requirements in further detail, please contact us.

With an 8:1 zoom ratio, the SX80 has a standard magnification range of 8x – 64x (256x max.) allowing fast and accurate viewing of all subjects. A compact, modular design allows accessories to be added to the configuration, without loss of contrast and clarity.

Optical data

SX80 Optical Data


Objective Lenses

Zoom Range

Working Distance

10x/22 F.N. 0.5x 4x – 32x 130mm
10x/22 F.N. 1.0x 8x – 64x 78mm
10x/22 F.N. 2.0x 16x – 128x 32.5mm
15x/16 F.N. 0.5x 6x – 48x 130mm
15x/16 F.N. 1.0x 12x – 96x 78mm
15x/16 F.N. 2.0x 24x – 192x 32.5mm
20x/13 F.N. 0.5x 8x – 64x 130mm
20x/13 F.N. 1.0x 16x – 128x 78mm
20x/13 F.N. 2.0x 32x – 256x 32.5mm

Technical Data

Technical Data

Optical System CMO (Common Main Objective)
Total Magnification 4x – 256x
Zoom Ratio 8:1
Observation Tube Inclination 20°
Interpupillary Distance 55mm – 75mm
Objectives Plan Achromatic 0.5x, 1.0x, 2.0x
Eyepieces WF10x F.N.22; WF15x F.N.16; WF20x F.N.13


Bench Stand

  • A = 240mm
  • B = 285mm
  • C = 390mm
  • D = 185mm max., less working distance*

* with 1x objective

Boom Mount

  • E = 275mm
  • F = 395mm
  • G = 485mm
  • H = 442mm max.
  • I = 230mm max., less working distance *

* with 1x objective

Dual Arm Boom

  • J = 245mm max., less working distance*
  • K = 670mm max.
  • L = 405mm

* with 1x objective
