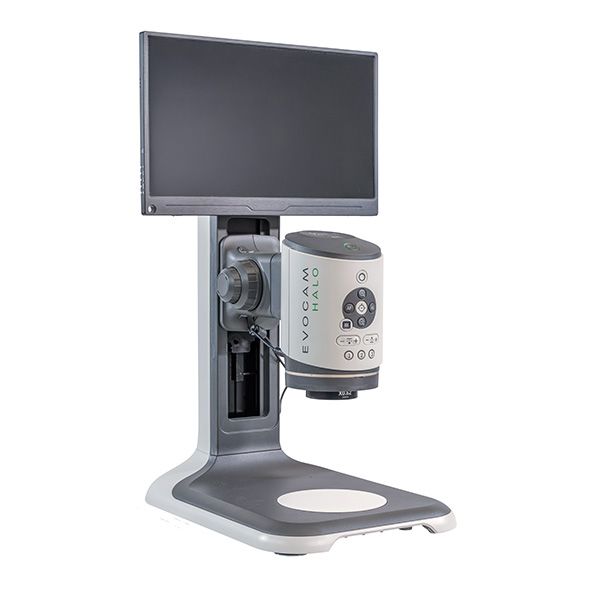

    Vision Engineering's EVO CAM HALO - 4K Digital Inspection System

    main product photo
    Description

    New 4K Digital Inspection System - EVO CAM HALO

    Combining both stunning 4K imagery with advanced, adaptive illumination. New intelligent software empowers you to capture even the most elusive details with unparalleled accuracy.


    Key Features

    • 4K Resolution - Incredible image quality even on reflective and translucent parts
    • Super Wide Dynamic Range - Supreme brightness and contrast
    • Advanced Illumination Range - Optimise for a variety of applications
    • Intelligent Software & Hardware - Includes automatic lens detection
    • 360 Direct/Oblique Viewer - See completely around your subject at all angles
    • Real Time Insights - Image capture, measurement & analysis

    Available Stands

    Ergo

    Double Arm Boom

    Multi-Axis

    Verso

    Objective Range Data

    Objective Working DIstance Magnification Range*
    X0.45 172mm 2.16-43.2x
    X0.62 120mm 2.97-59.4x
    X1.0 84mm 4.8-96.0x
    X1.5 43mm 7.2-144x
    X2.0 30mm 9.6-192x
    2D 500mm 0.84-16.8x
    3D 333mm 1.26-25.2x
    4D 250mm 1.68-33.6x
    5D 200mm 2.11-42.2x



    *Magnification with a 27" screen (2160p)



    Objective FOV Low/Max FOV DIgital Zoom (x2)
    X0.45 295 / 16.5mm 8.3mm
    X0.62 230 / 12.0mm 6.0mm
    X1.0 95 / 7.5mm 3.8mm
    X1.5 47 / 5.0mm 2.5mm
    X2.0 29 / 3.5mm 1.8mm
    2D 455 / 36.5mm 18.3mm
    3D 417 / 24mm 12.0mm
    4D 315 / 18mm 9.0mm
    5D 235 / 14.5mm 7.3mm



    *FOV at lowest & Maximum magnification

    Register Your Interest & Be First To Be Hands-On

    More Information
    General Specifications

    This system is due to be released soon - more information will show here shortly

    Features
    Focus Control Autofull, AutoSpot, or Manual Focus
    Exposure Control AutoFull, AutoSpot, Aperture Priority, Shutter Priority, Manual
    Lighting Control Quadrant, White / UV and Brightness
    Image Control Image Freeze, White Balance, Noise Reduction, Visibility Enhancer, Highlight Correction, Gamma, Mirror-Flip, Cross-hair
    Languages English, French, German, Italian, Portuguese, Spanish
    Presets 3 User-settable Presets
    Image Capture Optional capture box or via PC connection
    Camera / Hardware
    Sensor CMOS 1/2.5" 8.51 MP
    Image Ultra HD 2160p (3840 x 2160)
    Zoom 20:1
    Digital Zoom X12, X2, Off (selectable)
    Lens mount Auto-detect Bayonet
    Lighting Clip-on Intelligent Mount
    Interface 4K HDMI
    Front Panel Control Image freeze, Zoom-in, Zoom-out, Exposure Mode, Focus Mode, Menu, Ring-light Brightness, Sub-stage Brightness, Preset 1-3
    Remote Control Optional
    Optics 11 Autodetect Bayonet Mount Objective Lenses (see separate table)
    Lighting Intelligent 8-point Quadrant, Intelligent Wide-area Panel, Intelligent White/UV Quadrant, Sub-stage. External EPI and Contrast-enhancing Illuminator
    Lighting Filters Polarisation, Colour Temperature Change
    Image Capture Optional capture box or Via PC Connection
    Write Your Own Review
    You're reviewing:Vision Engineering's EVO CAM HALO - 4K Digital Inspection System
    Your Rating
    Customer Questions
    Can the EVO Cam HALO be connected to a PC or Laptop?

    Yes, it is simple to connect the HALO to a PC or laptop by using the 4K frame grabber.

    How are the lenses changed on the EVO Cam HALO?

    The lenses on the HALO have a bayonet mount. This means they can be removed and refitted easily by hand, without the need of any additional tools.

    What does the Auto Lens ID do on the HALO?

    Auto Lens ID removes the need for the user to change the lens settings in the menu when a new lens is added to the HALO. This keeps the displayed magnification correct and, where limits to the zoom range have been applied, the settings are automatically adjusted to keep within those set limits without the user needing to do anything.

    How much better is the image on the HALO compared to the other EVO Cams?

    The HALO utilises a 4K camera, which has 4 times more pixels than a Full HD system. This means that the finer details can be seen when displayed at the same magnification.
