Browse our range of PCB jumpers, with many different ranges and custom configurations available. If you require a bespoke jumper, fill in our Jumper questionaire from the downloads tab and email it to [email protected]

Range Of PCB Jumper Variations Available

VSOP8, TSSOP8, SO8 (8 Leads)

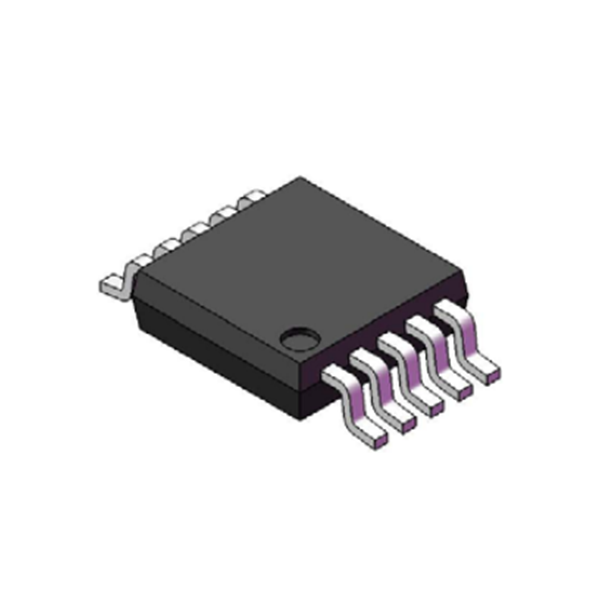

VSOP10, MSOP10 (10 Leads)

SO, TSSOP Series (14~16 Leads)

DPAK - TO252 (3~7 Leads)

D2PAK - TO263 (3~7 Leads)

DIP TO Series (3~16 Leads)

DFN & QFN Series (6~100 Leads)

TQFP & LQFP (32~208 Leads)

BGA & LGA (32~2500 Solder Balls)

How To Order PCB Jumpers Through Kaisertech



When you require a specific PCB Jumper, we need only know what your need is, the application and the size. Any sketches or schematic jumper connections you could provide will aid us in determining the optimal jumper for your PCB.

Alternatively, you can fill in our PCB Jumper questionnaire (see downloads tab). Fill this out and email it across to [email protected] and we will come back with the solution and competitive quote.

If you already know the Jumper series and variation that you require, contact us and we can provide a quotation upon request.

What Are Zero Ohm Jumpers?

A zero ohm jumper conducts the current / bridge over and around tracings on a PCB (even when the trace is on a 45 degree angle.

They can be used as a means of replacing obsolete components on the fly or to redesign a circuit after the board is in production. This gives PCB designers creative means of re-routing, even when on a single sided board.


SOT jumpers mount onto your PCB using regular SAC305 lead free solder paste, like regular components. The most common configuration involves pin 1 being shorted to pin 3 or pin 2 to pin 3. However, we have many variations available, even covering versions with up to 8 shorted pins. Call us, or send us your enquiry by email for a competitive quote on your SOT jumpers.

More Information
General Specifications

Topline Part Number System For PCB Jumpers

Series
2 Pins SR, SM1, SOD80, SOD123G, SOD123FW, SOD323G, SOD523FL
3 Pins SOT23, SOT323
4 Pins SOT343, SSL0805
5 Pins SOT25, SOT353
6 Pins SOT26, SOT363
8 Pins SO8, VSSOP8, TSSOP8, SIP8
10 Pins VSSOP10, MSOP10
14 Pins SO14, TSSOP14, SIP14
16 Pins SO16, TSSOP16, DIP16
8~100 Pins DFN, QFN
3~7 Pins DPAK, D2PAK



Packaging
Reel
4 Inch E4A
7 Inch E7A
13 Inch E13A
Partial Reel E
Bulk
Bag B
Tube M
Tray T



Plating
RoHS Pb-Free Sn100 Matte Tin T



Jumper Code
Schematic
Zero Ohm Pattern DC##
Isolated Circuit Without Connections ISO
SR Series
Zero Ohm ZERO



Option
Standard [Blank]
Dummy Die D
Halogen Free H
AEC-Q101 Q
