Vacuum Sealing Machine Bench Top/Freestanding Probe Type

£2,500.00 (exc VAT) (£3,000.00 inc VAT)

Bench Top/Freestanding Probe Type Vacuum Sealing

Zoom Out
Zoom In

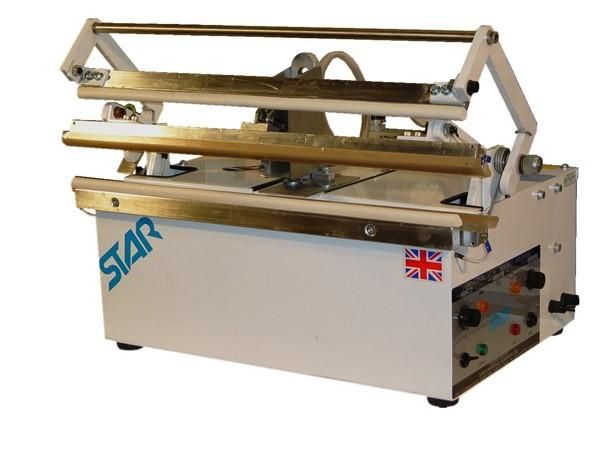

The Star 106 is a bench mounted or free standing probe type vacuum sealer. With both jaws heated it can seal most modern barrier materials such as foils and nylon laminates up to 900mm in width. Manual and automatic vacuum clamp jaws are available with either solenoid or pneumatic sealing jaw operation. A range of vacuum pumps is available between 6 and 15m3/h. The vacuum cycle can be manual, automatically timed or programmed to a pre-set level. As the product is not placed inside a chamber there is no limit to the maximum product length. The machine can be finished in either powder coated mild steel or stainless steel for more corrosive

View FileSTAR 106 Manual    Size: (787.79 KB)

General Specifications

Seal Length

500mm

600mm

750mm

900mm

Seal Width

6mm standard. 2.5mm, 9.5mm, 12.5mm and 20mm options

Jaw Opening

Solenoid approx 30mm, Pneumatic approx 45mm

Max Material Thickness

1000μm approx (4000g)

Sealing Cycle Time

Typically 4-10s

Vacuum Cycle Time

Typically 2-20s dependant on size of pack and vacuum level required

Power Supply

230V 50/60hZ Single Phase, 115V Optional

Average Power Consumption / Cycle

0.02kWh

Average Power

Vacuum 160W, Weld 1730W, Cool 250W, Standby 25W

Air Supply Pneumatic Machine Only

6-8 bar Clean Dry Air

Air Consumption / Cycle

0.525-2.150Nl at 6 bar

Jaw Length

565mm

665mm

815mm

965mm

Machine Body Length Manual Clamps

500mm

500mm

500mm

500mm

Medical Machine Body Length Auto Clamps

790mm

890mm

1040mm

1190mm

ARTICS Controller Housing Manual Clamps

160mm l x 245mm d x 205mm h on right hand end of machine

Depth

Solenoid 415mm, Pneumatic 667mm

Overall Height

Solenoid 430mm, Pneumatic 340mm

Weight Solenoid Machine excl pump

40kg

42kg

44kg

47kg

Weight Pneumatic Machine inc pump

47kg

51kg

55kg

59kg
