CAB MAESTRO 2 / 2M PCB Separator

CAB MAESTRO 2 / 2M PCB Separator

Zoom Out
Zoom In

MAESTRO 2 separates small amount and prototype series of PCBs fast and economically. The compact and stable aluminum frame requires only a minimum of space.

MAESTRO 2

is the reasonable model to start with, suitable for smaller numbers of PCBs. The PCB is fed manually between the circular blades and is thereby separated.

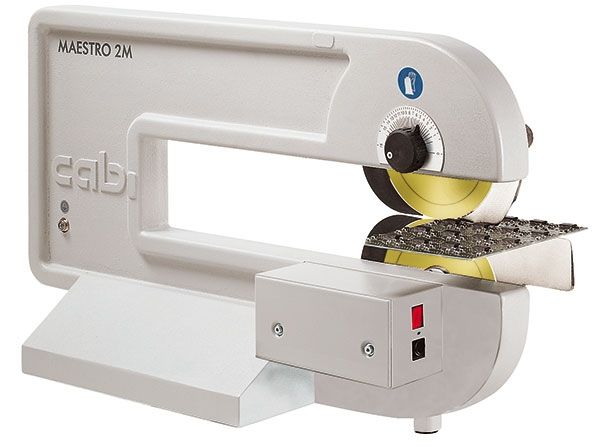

MAESTRO 2M motorized

Separates large numbers of PCBs without fatigue of the operator. The lower circular blade is driven by a motor. The PCB is fed between the circular blades where it is seized, transported and separated. Three different speeds can be selected. Especially useful for high packing density or thin edge stripes.

Strain of components

Frequently for critical components an upper limit of tensile stress will be determined. Please ask us regarding possibilities to reduce tensile stress of components.

Safe Operation

The PCB is held with both hands and fed between the circular blades for separation. The clearance between the upper guide and the lower guide is adjustable to ensure that the PCB is only fed through the machine in the pre-scored groove.

View FileCAB Product Brochure    Size: (2.61 MB)

General Specifications

Technical DataMaestro 2Maestro 2 M
Separation type Component side: circular blade
Solder side: circular blade
Operation by hand motor-driven
Separation speed / 100/200/300 mm/Sek.
Separation length 15 - 300 mm
Mains voltage / 240 VAC, 50 Hz
110 VAC, 60 Hz

Temperature / Humidity  Operation
Temperatur / Luftfeuchte Storage
Temperatur / Luftfeuchte Transport

  +5 - 40° C / 10 - 85 % non-condensing
  +0 - 60° C / 20 - 80 % non-condensing
 -25 - 60° C / 20 - 80 % non-condensing

Weight 16 kg 19 kg
Dimension H x W x D 330 x 195 x 620 mm
Approvals CE, FCC class A
