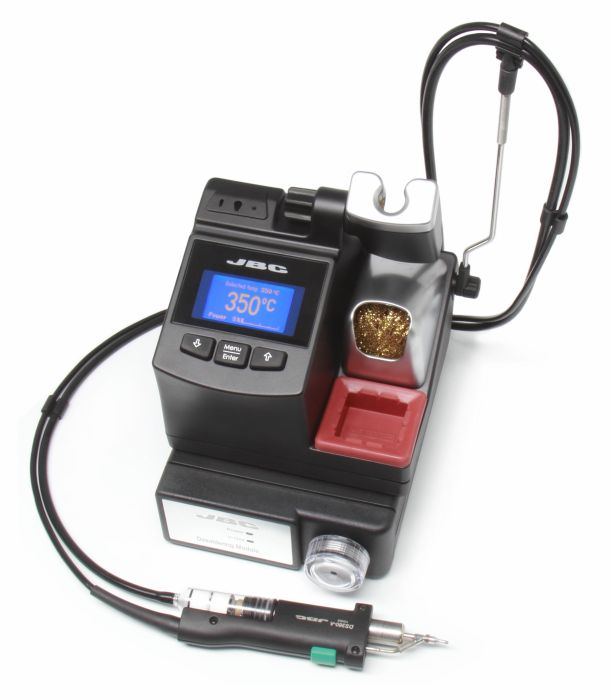

JBC CV-2D Micro Desoldering Station with Pneumatic Suction Pump

JBC CV Desoldering station with Pneumatic Pump

Zoom Out
Zoom In

CV is a microdesoldering station using compressed air for precision electronic applications.

It works with the JBC exclusive heating systemand the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the process.

It incorporates a USB connector (type B) to update station software and create graphs.

CV works with the MV-A Pneumatic pump, the comfortable DS360 Microdesoldering Iron and C360 cartridges.
View FileJBC Compact Line    Size: (1.19 MB)
View FileKaisertech Product Guide v.2.o    Size: (5.76 MB)

General Specifications

Weight 2.8 kg (6.2 lb) (station)
Size 150x175x145 mm (station)
Voltage (AC) 230V / 120V / 100V
Input Fuse 1A (230V), 2A (120V and 100V)
Output Peak Power 40W / 23.5V
Temperature selection 180-450 ºC / 356-840 ºF
Ambient operating temp. 10-40 ºC / 50-104 ºF
Tip to ground resistance <2 ohms
Air pressure 4 - 6 bar
Vacuum (at 6 Bar) 90% / 680 mmHg / 26.8 inHg
Flow rate 15 SLPM
USB connector station-PC
ESD Safe
Package weight 4.7 kg (10.3 lb)
Package dimensions 330x260x305 mm
