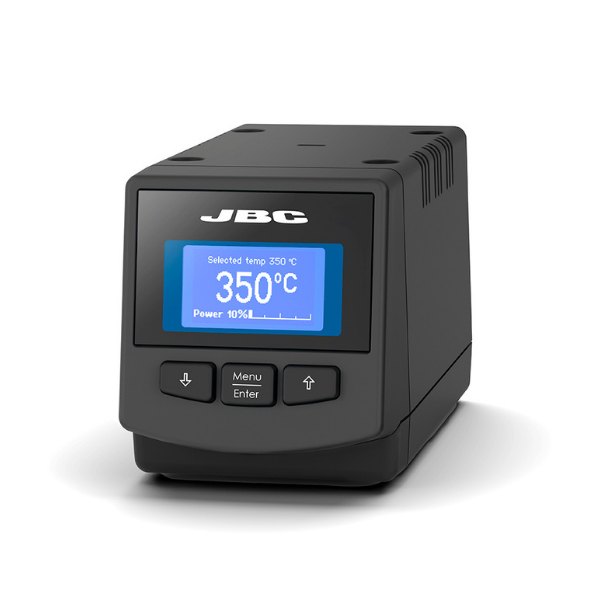

JBC DI-2D 1 Tool Control Unit

The JBC DI-2D operates with one soldering or desoldering tool and is fully compatible with 10 different JBC Tools delivering up to 130 W.

This product features JBCs dynamic soldering profile which aids in helping to avoid thermal shock when ceramic chip components such as MLCC are being soldered. The easy-to-use menu can be utilised to manage the soldering process and personalise over 20 parameters. The DIU features an excellent range of benefits which includes customisation, control and remote working capabilities.

For a basic working system, you need at least 1 stand, 1 tool and 1 cartridge.

System Features

• Work screen - The simplistic design of the DI-2D's interface avoids confusion and provides all the visualisation you need to improve the efficiency and accuracy of your soldering tasks. Easy configuration allows the stations parameters to work to your exact requirements and personalise your application needs.
• Tool presets - The system allows you to set your custom tool pre-sets easily in one place. Fix one temperature for your tool and allow the control unit to detect any desired configurations you demand.
• Partial Counters - Keep count of the hours that are worked in each working cycle with this control unit. With an easy display of information, the unit allows for tracking of how many sleep or hibernation cycles are performed and desoldering cycles. Easily reset this with the touch of a button for the undertaking of different applications.

Connectivity & Software

Use the USB-A-B cable to connect multiple stations to your PC. The JBC connector allows you to download the latest software from our website to improve your soldering station.

Special Features Of The JBC DI-2D

Sleep & Hibernation Mode - Take advantage of the sleep and hibernation modes that are pre built into the JBC DIU modules. They allow the soldering tip temperature to be lowered once the tool rests in the stand. This aids in preventing oxidation whilst also prolonging the tip life of your JBC cartridge.

Temperature Limits - Limit the operation temperature for each of your tools that are connected to the control unit.

Real Time Visualisation - Soldering graphics displayed to allow the user real time visualisation of both the power that is delivered and the temperature of your cartridges, whilst the soldering process occurs.

Temperature Controls - Edit up to three custom temperature profiles and switch between them effortlessly. Perfect for solder joints with differing heat requirements.

PIN Protection - Ensure the security of the parameters of your soldering station. Select a unique 4 digit code that prevents your unit from unauthorised access.

Language Settings - Choose between 10 different language settings, including - English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean or Chinese.
