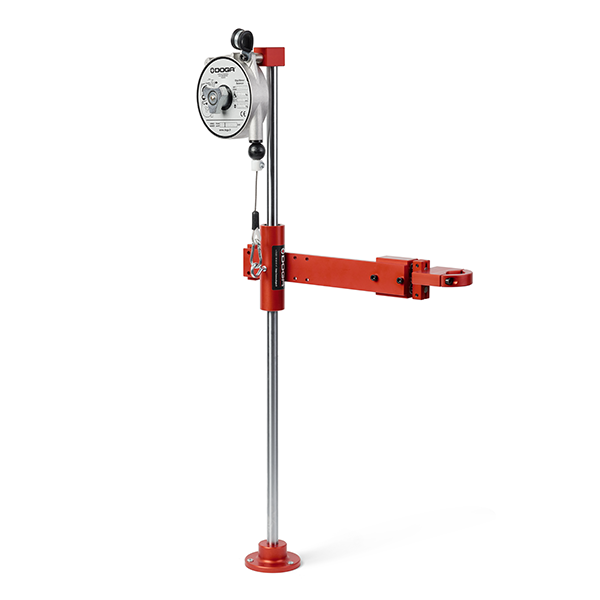

DOGA BA Series Of Linear Torque Reaction Arm
DOGA BA Series Of Linear Torque Reaction Arm
Designed for simple installation onto your worktop, the BA Series of Linear Torque Reaction Arms is both robust, compact and versatile for many applications.
These linear torque arms from Doga help to shield the operator from musculoskeletal disorders up to 100Nm – improving user comfort & reducing absenteeism.
Perfect for vertical tightening requirements, with high flexibility due to the ball bushings and a perfectly balanced tool.
You are guaranteed the perfect torque recovery, a balanced tool and optimised perpendicularity of tightening.
Benefits Of Using The BA Series
- User Comfort – Suppression of MSD, Perfectly Balanced, Flexible Operation
- Assembly Quality – Guaranteed Perpendicularity Of Tightening
- Productivity & Accuracy – Guidance of Operating Movement
Models In The BA Series
Model |
Torque Max (Nm) |
Tool Ø (mm) |
Stroke |
Load Max (kg) |
SKU |
BA 5 |
5 |
25-42 |
200 |
0.9 |
285-5200085 |
BA 12 |
12 |
27-50 |
225 |
1.2 |
285-5201000 |
BA 25 |
25 |
28-52 |
250 |
2.2 |
285-5200076 |
BA 40 |
40 |
28-52 |
295 |
2.2/4 |
285-5200067 |
BA 100 |
100 |
28-52 |
325 |
3/5 |
285-5200068 |
