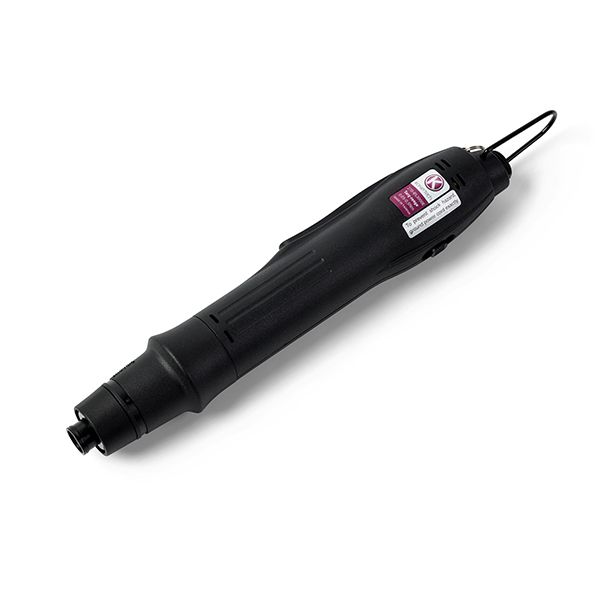

ESD BS2000e Electric Screwdriver - Brushless | 0.03-0.2Nm

ESD BS2000e Electric Screwdriver - Brushless | 0.03-0.2Nm



With adopted high precision, low inertia, long lift and high quality, our screwdrivers are specially designed for use with precision torque locking screws.

However, it can be used for assembly of small items such as mobile phone, cameras and eyeglasses, and large items such as home appliances, computers and furniture.



Key Features

  • Low vibration, low noise and meets environmental protection demands.
  • Brushless motor suitable for cleanroom use.
  • Reduce air pollution and protects the environment.
  • Connecting with soft start and speed adjustable function power supply, not only match to changing fastening condition, but also keep the best fastening quality.
  • More accurate torque and longer motor life.
  • Ergonomically designed exterior reduces work fatigue and increases productivity.



Environmental Features

Brushless features of this electric screwdriver reduces maintenance and doesn’t contaminate the environment making it safer when in contact with fluids due to the elimination of arcing.

Lastly due to the lower thermal resistance, these drivers are capable of operating in wider temperature ranges, have higher torque to inertia ratios, and greater acceleration.



Power Supply

The standard power supply packed with all drivers offers the option of running at either low or high speed.

Electric screwdrivers are the preferred tool for industrial assembly causing less contamination to the environment and requiring less maintenance. Our lever-start industrial models feature a comfortable light weight design and accurate torque control.

Power screwdrivers are selected based upon the torque control setting required. All models feature fully automatic shut-off, resulting in a motion close-down once the torque setting is reached. Electric screwdrivers listed are ESD safe.

More Information

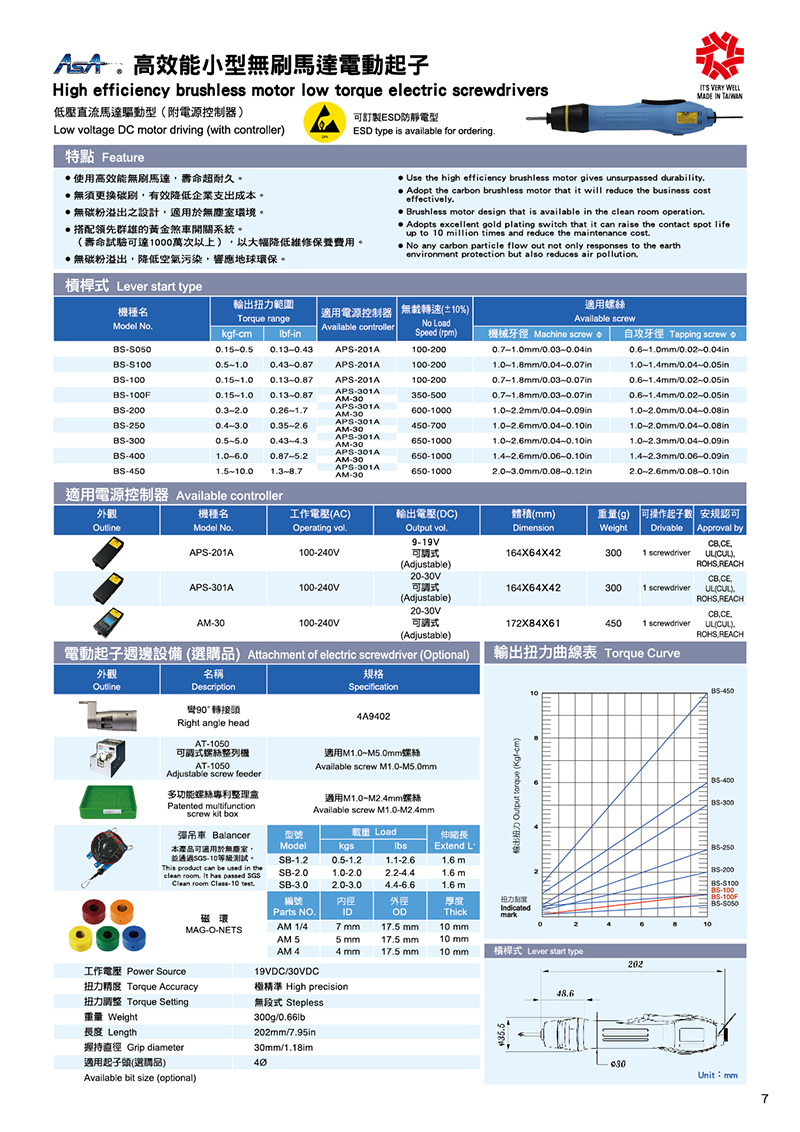

General Specifications
  • Torque: 0.03-0.2Nm
  • Rotation Speed: 700-1000 rpm
  • Comes with PSU

Model BS-2000
Power source 30VDC
Torque range 0.3~2.0/0.26~1.7
kgf-cm/1bf-in
No load speed rpm 700-1000
Torque setting Stepless
Available Machine Screw 1.0~2.2/0.04~0.09
Screw mm / in
  Tapping Screw 1.0~2.0/0.04~0.08
  mm / in
Weight g / 1b 412g/0.91b
Length mm / in 227mm/8.9in
Available bit shank ψ5 or 1/4"(6.35) Hex shank
Power consumption W 60
Available power supply APS-301A
Clutch impact Just one time when torque up
