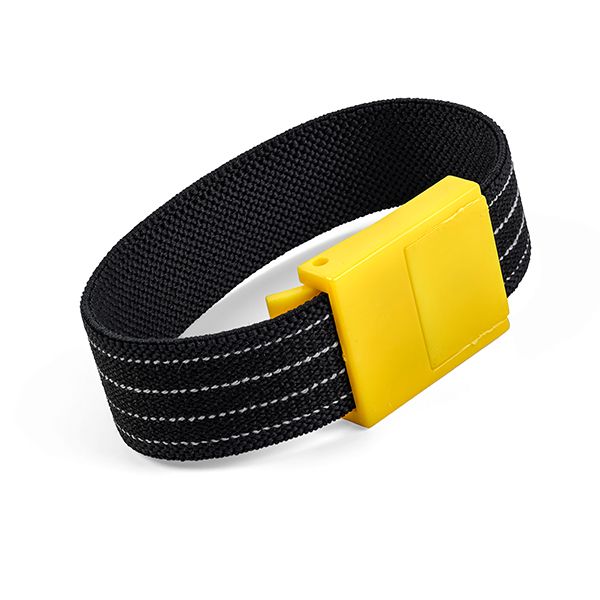

ESD Anti Static Wristbands - Fabric & Anti-allergenic 10mm Stud
ESD Anti Static Wristbands - Fabric & Anti-allergenic 10mm Stud
A crocheted lightweight anti-allergy wrist strap designed to be worn in an EPA to ensure path to ground. Must be used in combination with a grounding cord and bonding plug to ensure operator is grounded.
Anti-allergy is designed for people who suffer from allergic reactions to standard anti-static wrist straps.
This product needs to be tested regularly with a wrist strap tester.
Band Construction
Constructed using premium crochet fabric band with elastic ratio of 1:2.5" to 1.3". Outer surface is non-conductive and inner surface of the strap shall be conductive, lined with 5-rows of double-ply Silver yarn
Electrical Properties
Interior Cuff Resistance ≤ 100 kilo ohms at 7 to 30 volts dc open circuit
Breakaway Force
1 to 5 lbs of pull away force is required to disconnect snap into normal direction
Wrist Strap Life Test
When stretched to 200%, band returns to its normal length after 20,000 cycles.
Key Features:
| Black wristband with Yellow buckle |
| The conductive woven fibres are Silver for maximum conductivity and minimum skin irritation |
| 10mm stud as standard, 4mm/ 7mm available on request |
| Durable and comfortable to wear |
| Hypoallergenic with a plastic backing to avoid metal contact with skin |
