ESD Conductive Grid Tape 48mm x 36m

£3.30 (exc VAT) (£3.96 inc VAT)

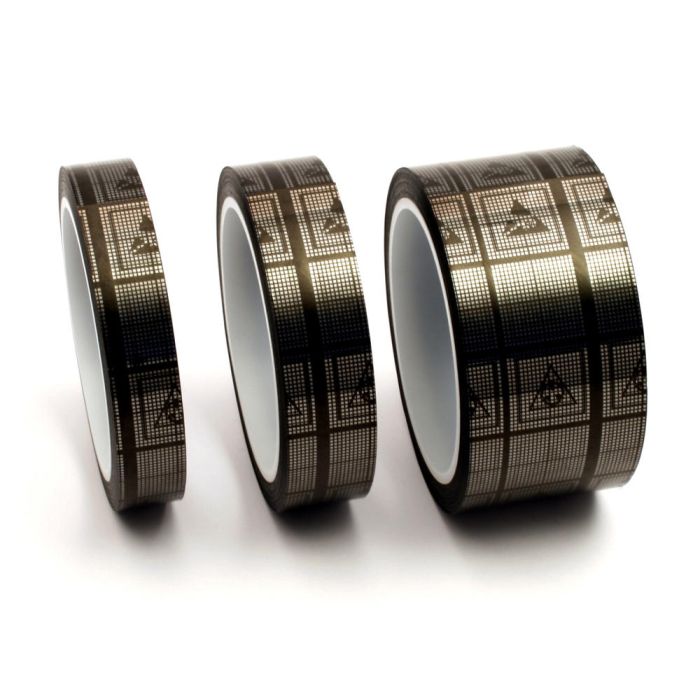

ESD Conductive Grid Tape 48mm x 36m

Zoom Out
Zoom In

Product Information:

  • ESD conductive grid tape with ESD symbol
  • Low charge surface
  • Grid tape is available in four widths 36 metres long

Conductive grid tape for use in the free static workstations, where ESDS (Electro Static Discharge Sensitive) components and devices are handled.

This tape has anti static inner and outer surfaces, with no shed, flake, crack, chip or rub off the inner layer grids, combination of which provides excellent for the most effective static prevention and shielding applications

View FileConductive Grid Tape Specification Sheet    Size: (167.17 KB)

General Specifications

Tensile Strength
MD 5.00KG/15mm (minimum)
CD 10.00KG / 15mm (minimum)
MD 150%
CD 50%
Anti Static Adhesive Copolymer Layer 1X10E9
Conductive Grid Layer 10E4-To-10E5
Anti static Copolymer Layer 8X10E12
Charge Decay Time (FTMS 4046, 101c) 0.01 seconds
Thickness (Total) 49 Microns
Carrier 28 Microns
Adhesive 21 Microns
Peel Adhesion 0.45 Kg / 15mm (maximum
Temperature Resistance 60◦ C / 140◦ F (maximum)
Base Material OPP
Adhesive Solvent Acrylic Base
Core Size  3”
Length 118ft
Width 12, 18, 24 or 48mm
