EVOTIS From Vision Engineering – Technical Inspection System

EVOTIS - PCB Inspection System From Vision Engineering

Introducing the EVOTIS from Vision Engineering, an advanced inspection workstation for larger PCB inspection and palletised components.

This stand has independently lockable X-Y axis movement and 3D & 2D configurations, allowing for methodical inspection and confident examination of the finer detail on your PCBs.

The EVOTIS is compatible with either the Lynx EVO or EVO Cam II Head, with the choice of 2 stands – ergo stand or floating stage (better with EVO Cam II). Included is an oblique and direct viewer and an earthing point on the ESD safe base board.



Features Of The EVOTIS:

  • Fast inspection for large PCBs and complex component inspection.
  • Independently lockable X-Y stage, allowing for methodical inspections.
  • 25° tilt wedge, catering for fixed position oblique viewing.
  • Compatible with unique 360° rotating viewer.
  • Special coated ESD base board & earthing point.



Breakdown Of The EVOTIS:

360 Viewer

This 360° Viewer allows you to rotate around the sample along with a direct down view once the stage is tilted. No more need to move the viewing sample around – something that becomes increasingly difficult with increased magnification. This makes it simple to view side details along with the usual top surface, perfect for joints, holes, pillars & threaded forms.



Methodical Inspection

The stable and high capacity stages allow for free floating movement for all PCB sizes – even double sided PCBs. The stages enable for easy inspection of difficult to handle items, with the ability to be locked for the more precise of inspection requirements.



Choice Of Heads

There are 3 variations available, see table below:

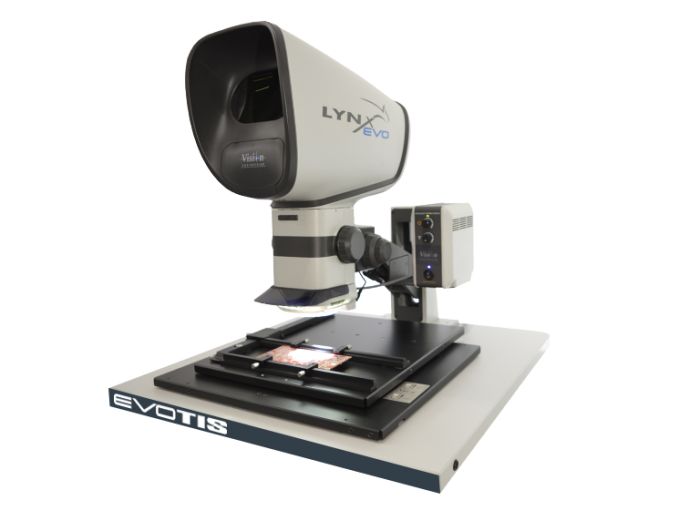

EVOTIS with Lynx EVO & 360° Rotating View
Free floating table:
  • 300 x 250mm
  • 460 x 460mm
25° tilting wedge
Optional 28mm "stand-off" kit
Available with compact, standard & large base
Base board with ESD coating & earthing point
3D stereo view of larger PCBs & components
Control how you view detail from every angle
3D image capture & recall



EVOTIS with Lynx EVO & SmartCam
Eyepieceless stereo view (3D)
3.7x - 180x magnification
360° rotating view
Compatible with Lynx EVO objectives & accessories
Image capture with SmartCam/SmartCam5 cameras

Accessories include:

  • SmartCam/SmartCam5
  • Multipliers 1.5x and 2.0x
  • 0.62x, 1.0x and 1.5x objectives
3D view with 2D image capture & connectivity
Measurement & analysis software built into the interface



EVOTIS with EVO Cam II & UV Illumination
Large zoom range camera
5.5x - 300x magnification
360° rotating viewer
Compatible with EVO Cam objectives & accessories
Stand alone or PC connection

Accessories include:

  • 0.62x and 1.0x objectives
  • Polarising filters
  • White/UV quadrant ring light
  • External keypad
Simple to switch between white/UV settings
Easy to capture images & share them with others in an instant



2D & 3D Solutions

No matter the requirements, the EVOTIS meets your needs – with configurations for 2D camera inspections or 3D stereo inspections. Simple to use software also caters for measurement, quantification & reporting.

More Information
General Specifications
  Lynx EVO EVO Cam II
Optical System Eyepieceless stereo viewer High resolution digital microscope
Zoom Ratio 10x,15x,20x 30x
Magnification Range 2.7-240x 3.1-300x
Objectives n/a 250-756x
Max Component Height (mm)
0.62x 47 37
1.0x 98 74
1.5x 106 82
2.0x 119 96
5.0x n/a 118
10.0x n/a 118
360° Rotating Viewer 39 39
Image Capture Lynx Evo SmartCam or SmartCam 5 camera options standard on-board controls or with PC connection using Windows software
