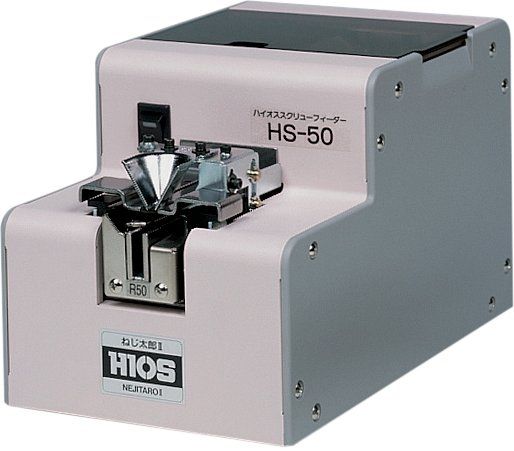

For Manual Operation HS (2 Models in Total)

For Manual Operation HS (2 Models in Total)


The work efficiency of a production line will be dramatically improved when using the HS model. With a large screw capacity of 150cc, a single unit can handle three screw diameters by changing rails.



Key Features:

  • It has a large screw capacity of 150cc.
  • Compatible with the suction type (for automatic assembly machines).



Models Available:

HS-35 (M3.5)
HS-40 (M4.0)
HS-50 (M5.0)

Key Information

Check operation - Before operating your HIOS screw feeder, make sure the screws match your model. You can easily replace the rail unit to match the diameter of the screw you wish to use. Check the screw number shown on the front of the rail unit to make sure your using correct diameter screw. Before operation, adjust the following according to the screw type to be used.

Adjusting the height of the brushes - The brushes in the HSF should rotate at a height where they come in contact with the screw heads going into the rail groove. If adjustement is required, loosen the brush height adjustment screw.

More Information
General Specifications
Power supply Input AC100 (50/60Hz)
  Output DC12V 500mA
Weight (g) About 3.2kg
Screw capacity 150CC
Over load protection circuit Reverse rotation when overloaded, forward rotation when restored
External dimensions(mm) 130(W)x215(D)x136(H)
Driver type for manual operation
Accessories 1 installed standard rail, 1 guide plates, 1 hexagonal wrench (width across flats 2mm)
Write Your Own Review
You're reviewing:For Manual Operation HS (2 Models in Total)
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?

For Manual Operation HS (2 Models in Total)

SKU
280-HS

Phone: +44 02380 650065

The work efficiency of a production line will be dramatically improved.

● A single unit can handle three screw diameters by changing rails.
● It has a large screw capacity of 150cc.
● Compatible with the suction type (for automatic assembly machines)
