HD Series Brushless Hybrid Torque Control Spindle | 40V

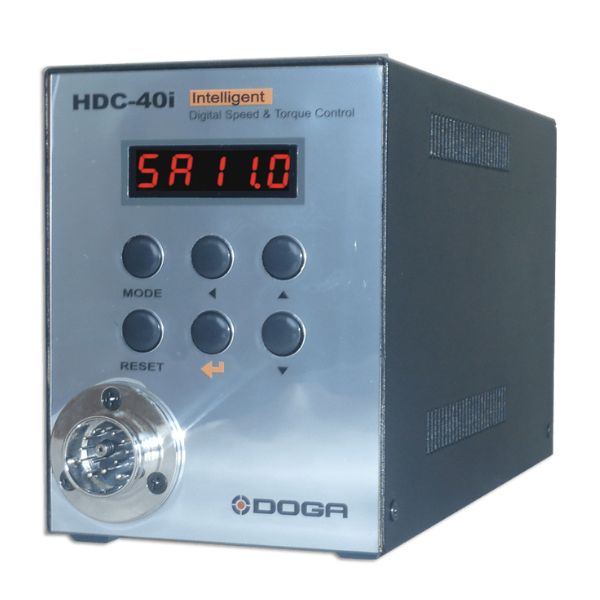

The HDA spindle is designed for easy integration into automated workstations. When the HDC controller is used in conjunction with this hybrid spindle, it is multi-torque and allows for the sequencing of strategies. High repeatability and tightening precision are ensured.

Equipped with a high quality Brushless motor and a pneumatically controlled torque limiter. Can execute up to 8 tightening programs and perform sequences of different torques on a single piece with counting function.

Choose your Torque from the drop down:

Trigger Start Version Available Here
Lever Start Version Available Here
Push-To-Start Version Available Here

Features Of The HDA Spindle

• Brushless DC motor (service free)
• ESD free by body grounding
• Torque repeatability ~ 7%
• Inside memory chip for tool data and recognition
• Built-in air clutch
• Angle monitoring
• Sequencing programs
• Noise level: <70 dBA, vibration level: <2,5 m/s²

Benefits Of The HD Series

Productivity - Designed for high tightening precision. Features multi-torque settings (8 tightening programs) and program sequencing.

Quality - Brushless Maxxon motor (maintenance free). Displays tightening results.

Comfort - The weight to ergonomic ratio has been perfected, along with the silent motor than operates under 70 dBA.
