JBC CP-2QE Micro Tweezers Station

£430.00 (exc VAT) (£516.00 inc VAT)

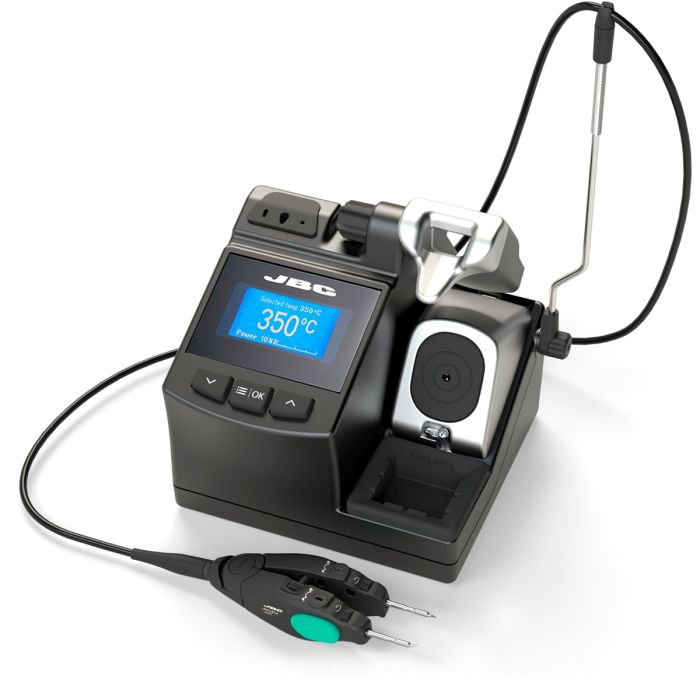

JBC CP-2QE Micro Tweezers Station

Zoom Out
Zoom In

The CP Station is the best solution for soldering and rework of SMT components like chips and small/medium SOP that require the highest precision. See video for soldering examples.

It works with the JBC Most Efficient Soldering System and the intelligent Hibernation mode

This station comes with the Adjustable Micro Tweezers AM120 that works with C120 cartridges.

As all the Compact Stations, the CP has a menu with more than 10 parameters to customize the control unit.

The CP-Q Station is composed by:
- 1 CP Control Unit
- 1 AM120-A Adjustable Micro Tweezers

(Cartridges not included)

General Specifications

Selectable Temperature 90 to 450 ºC / 190 to 840 ºF
CONNECTIVITY
USB-B Software PC / Firmware update
Equipotential bonding Optional connection to EPA
ESD/EOS
ESD safe
Tip to ground resistance <2 ohms
Tip to ground voltage <2 mV RMS
POWER SUPPLY
Peak power 80 W - 23,5 V
Voltage (AC) CP-2QE - 230 V
Ambient operating temp. 10 to 50 ºC / 50 to 120 ºF
DIMENSIONS AND WEIGHT
Control Unit

150 x 175 x 145 mm / 2.70 kg

5.9 x 6.9 x 5.7 in / 5.96 lb

Package

234 x 234 x 258 mm / 3.10 kg

9.2 x 9.2 x 10.2 in / 6.82 lb

Compact Stations: CP
Tools: AM120-A
