JBC microtweezers are a perfect solution for fast and precise SMD rework of chip components and small/medium SOP from PCB assemblies.
The PA120 works with two cartridges managed individually by the control unit to ensure the maximum accuracy and a quick temperature recovery. Each cartridge can deliver up to 40W.
Perfect cartridge alignment
The adjusting system guarantees that the cartridges are equally aligned, with vertical and rotational symmetry.
Shortest distance Tip-to-Grip
Provides the greatest precision handling of the tool, even under microscope.
Stable movement
A single axis system helps guide your hand and steadies your pulse. Ideal for very precise applications.
Finger grip
The concave shape means a snug fit for your finger ofering outstanding grip.

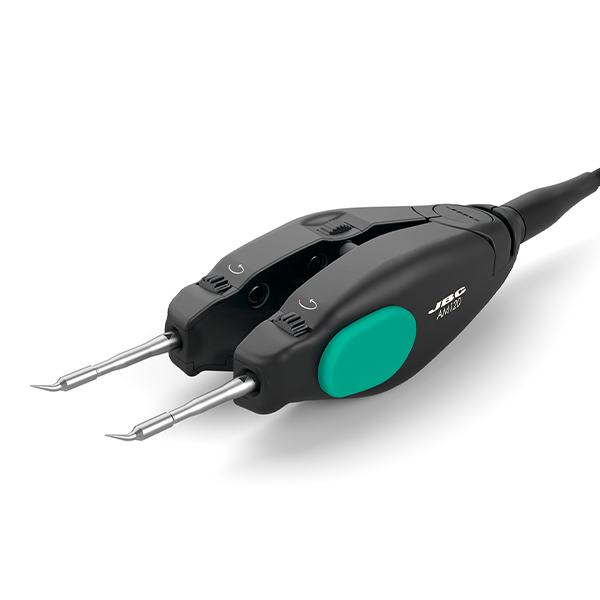

The Micro Tweezers AM120 work with C120 cartridges whose exceptional thinness allows reworking components on heavy populated PCBAs without disturbing nearby components.
Supplied without cartridges.
| General Specifications |
|---|
Cartridge compatibility
C120 Range
Station compatibility
CP / DI /
DDE / DME
Temperature range
90 to 450 ºC / 190 to 840 ºF
Peak Power
80 W - 23.5V
Cable length
1.5 m / 4.9 feet
SPECIAL FEATURES
Cartridge alignment
The adjustment knobs built in this Micro Tweezers allows perfect alignment of both tips for precise rework of the smallest SMD components.
Stable movement
Thanks to its robust pivot shaft, the Tweezers allows keeping the component in between the tips preventing it from flipping over.
ESD/EOS
ESD safe
Tip to ground resistance
<2 ohms
Tip to ground voltage
<2 mV RMS
DIMENSIONS AND WEIGHT
Tool
35 x 32 x 112 mm / 0.1 kg
1.4 x 1.3 x 4.4 in / 0.22 lb
Package
277 x 73 x 50 mm / 0.17 kg
10.9 x 2.9 x 2.0 in / 0.37 lb |
