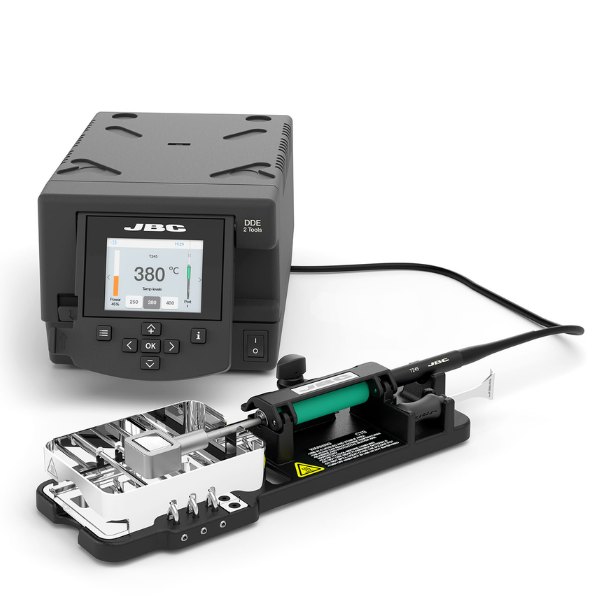

JBC DDCT Heavy Duty Solder Pot Station

JBC DDCT is the ideal station for both tinning wires and components quickly and safely, along with desoldering THT components.

The DDCT comes coupled with all the benefits of JBC's most efficient soldering system.

Key Features

DDE 2-Tool Control - Operates with 2 doldering or desoldering tools simultaneously, allowing you to manage parameters from your PC.
CTS Solder Pot Stand - It comes with a residual tray and protective screen, which prevents in advertent tipping and allows you to operate safely.
CHB Converter - It enables you to connect the handles to the control unit directly.
T245 General Purpose - Compatible with the C245SPO1 (18 X 15mm). The long lasting solder pot can withstand the corrosive nature of lead free solder alloys
Cartridge C245SP01 (18 X 15mm) included.

More Information

MPN

DDCT-2B

General Specifications

Peak Power	150 W per tool
Selectable Temperature	90 to 450 ºC / 190 to 840 ºF
Temperature Accuracy	±3 % (using reference cartridge)
ESD Safe	Yes
Temperature Adjustment	±50 ºC / ±90 ºF through station setting menu
Tip-To-Ground Resistance	Meets and exceeds ANSI/ESD S20.20 and IPC J-STD-001F
Ambient Operating Temp.	10 – 40 ºC / 50 – 104 ºF
USB-A	Firmware Update, Graphics and Profiles, Dino-Lite USB Microscope (AM2011, AM2111)
USB-B	PC Communication
RJ12	Fume Extractor / Peripherals / Robot
Weight & Dimensions
Heavy Duty	232 × 148 × 120 mm / 2.62 kg 9.13 × 5.83 × 4.72 in / 5.78 lb
Package	450 × 345 × 243 mm / 4.07 kg 17.72 × 13.58 × 9.57 in / 8.97 lb
