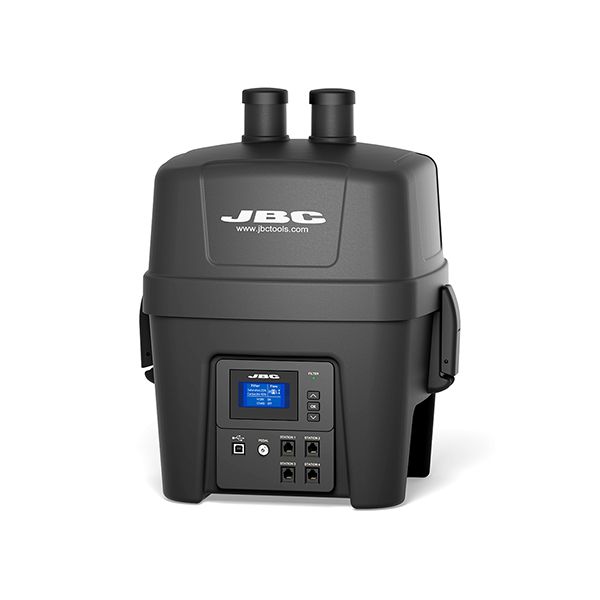

JBC FAE1 Fume Extractor for 1 Workbench

JBC FAE1 Fume Extractor for 1 Workbench

Does Not Include Flexible Arms (FAE070/FAE020) Or Hoses (FAE010) - See Below

The FAE1 is the most effective solution to avoid exposure to solder fumes in the working environment. The extractor activates and operates only when soldering. This function saves power and the life of the equipment as well as the filter.

Each arm offers 80m³/h aspiration, which optimises fume extraction for 2 benches simultaneously.

The system also detects when the tool is at rest and automatically absorbs the fumes. This is thanks to a vacuum system integrated into the stand.

This Fume Extractor provides direct connection of up to 4 soldering or rework stations and stand fume extractions for up to 4 tools.

FAE1 can be controlled via JBC stations, a pedal, a robotic system or a PC.

It has 3 predefined levels of aspiration: low, medium and high, and a custom mode with which you can set the airflow within the low (10%) and max rates (100%).

For A Basic Working System:

1 or 2 x Flexible Arms Ø50 - FAE070 / FAE020

1 or 2 x Flexible Hoses Ø50 - FAE010

Additional Extras

1 x Accessory For Stand Aspiration - FAE030 / FAE040

1 x Stand Aspiration Ducts (1 per tool, 4 per unit) - FAE050 / FAE060

Key Features:

  • Provides connection of up to 4 soldering or rework stations.
  • Has 3 predefined levels of aspiration; low, medium and high.
  • Detects when tool is at rest and automatically absorbs the fumes.

Watch the FAE1 Fume Extractor in action here.



Product Composition

1 x Fume Extractor for 1 workbench

1 x Premium Station Cable

1 x Compact Station Cable

1 x Compact station Adaptor

1 x Filter For FAE1 - FAE1-100

1 x Power Cable

Other Versions Of JBC Fume Extractors

Fume Extraction For Up To 8 Tools (4 Per Workbench)

More Information
General Specifications
SELECTABLE PARAMETERS
Aspiration flow rate Low / Medium / High / Custom
Operation modes

Automatic (JBC Stations)

Continuous

Pedal

OTHERS
Blower type Brushless
Max. flow rate 180m3/h (106 CFM)
Max. Vaccum 3.2 KPa (0.46 psi)
Work areas 1 or 2
Noise Level 55dB @1m
Pre-Filter Medium dust filter M5 (EN 779)
Compact Filter HEPA Filter H13 (EN 1822) - Carbon filter
CONNECTIVITY
USB-B PC Communications
RJ12 Connector Direct connection for 4 Stations

Pedal

Optional tool control
ESD/EOS
ESD Safe Meet ANSI/ESD S20.20-2014
Output Peak Power 110W Fuse 1.25A (230V)
DIMENSIONS AND WEIGHT
Unit

380 x 340 x 475 mm/ 10.50 kg

Package

425 x 425 x 545 mm / 12.76 kg
