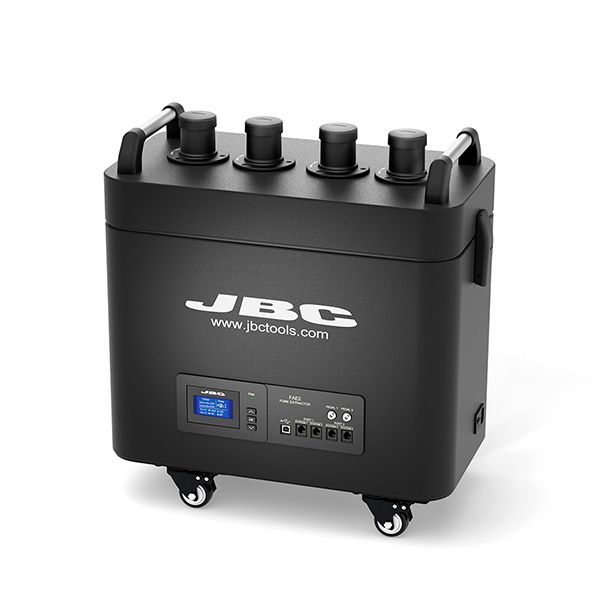

JBC FAE2-5B Fume Extractor

The JBC FAE is the most efficient solution to avoid exposure to solder fumes. It optimizes fume extraction operating only when needed.

The extractor starts up only when soldering. This function saves power and the life of the equipment as well as the filter.

Thanks to a vacuum system integrated into the stand, the system also detects when the tool is at rest and automatically absorbs the fumes.

It can be used simultaneously in two work areasand has 4 working modes depending on requirements. It can be controlled via JBC stations, a pedal, a robotic system or a PC.

It has 3 predefined levels of aspiration: low, medium and high, and a custom mode with which you can regulate the maximum and minimum rate.

For a basic working system, you also need:

*FAE010 - ø50 Flexible Hose
*FAE020 / FAE070 - ø50 Flexible Arm
*FAE030 / FAE040 - Accesory for stand aspiration
*FAE050 / FAE060 - Fume inlet duct

*These items are not included

Product Composition:
 1  FAE2-100 Compact Filter for FAE2 Fume Extractor
 1  FAE2-5B Fume Extractor
More Information
General Specifications
SELECTABLE PARAMETERS
Aspiration flow rateLow / Medium / High / Custom
Operation modesAutomatic (JBC Stations)
Continuous
Pedal
RS-232 remote control
OTHERS
Blower typeBrushless
Max. flow rate290m3/h (170.7 CFM)
Max. vacuum6.1 KPa (0.88 psi)
Work areas2
Noise Level54 dB @ 1m
FILTERS
Pre-filterMedium dust filter M5 (EN 779)
Compact filtersH13 particle filter (EN 1822) + activated carbon filter
CONNECTIVITY
USB-BFirmware update
Station 1-2 (RJ12)Direct connection for 2 Stations
Robot (RJ12)RS-232 remote control
Aux (RJ45)Peripheral expansion
PedalOptional tool control through Pedal P-005
ESD/EOS
ESD safe
POWER SUPPLY
Peak power400 W (120 V - 230 V)
320 W (120 V)
Ambient operating temp.10 to 40 ºC / 50 to 104 ºF
DIMENSIONS AND WEIGHT
Unit560 x 320 x 590 mm / 33.60 kg.
22.05 x 12.60 x 23.23 in / 74.07 lb.
Package725 x 485 x 760 mm / 36.00 kg.
28.54 x 19.09 x 29.92 in / 79.37 lb.
