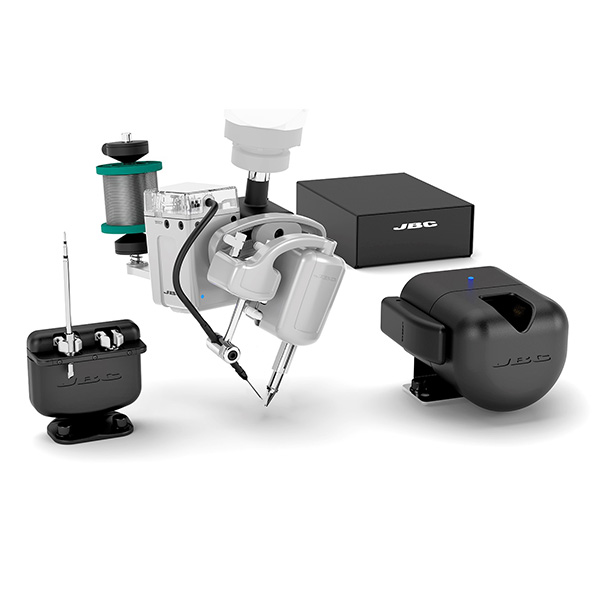

JBC HA245 Robotic Soldering Unit

JBC HA245A-5B - Automatic General Soldering Set For A Robot


The NEW JBC HA245 Soldering Unit for General Soldering makes available to the Electronic Industry the first selective soldering solution featuring Automatic Cartridge Exchange.

The New Automatic Soldering Iron TRA245, in combination with the Cartridge Stand CS2R245, features automatic cartridge exchange which allows the soldering robot using different tip geometries to get the Highest Soldering Quality and automatically changing the cartridges when the one being used wears out.

The Solder Feeder SFR, assembled on the RBA Soldering Head, includes solder wire perforation function, allowing flux flow and outgassing to minimize solder splashing.

The Tip Cleaner CLMR with its 50 mm (1.97") diameter brushes thoroughly clean the soldering tip in just 1 second increasing its heat transfer capacity.

To establish the communication between the UCR245 Control Box and a Robot (PC or PLC) JBC provides the RS232 Communication Protocol for UCR. You can download the software here

R245 Cartridges and Guide Tube Sets GSFR are not included but required.



HA Automatic Soldering Sets
HA245 - Automatic General Soldering Set
HA470 Automatic Heavy-Duty Soldering Set




Special Features

Cartridge Compatibility R245 Range
Automatic Cartridge Exchange The TRA features automatic tip exchange, allowing the soldering robot to use different tip geometries to get the highest soldering quality. You can also automatically change the cartridge when the current tip is worn.
Solder Wire Perforation Specific GSFR solder wire guide sets for flux core perforation are available. This allows for flux flow and outgassing to minimise solder splashing.
Fast, Gentle, Thorough Tip Cleaning The tip cleaner (CLMR) with its 50mm (1.97") diameter, brushes thoroughly clean the soldering tip in just 1 second. This helps to increase heat transfer capacity. Brushes are available with either metal or plastic bristles.

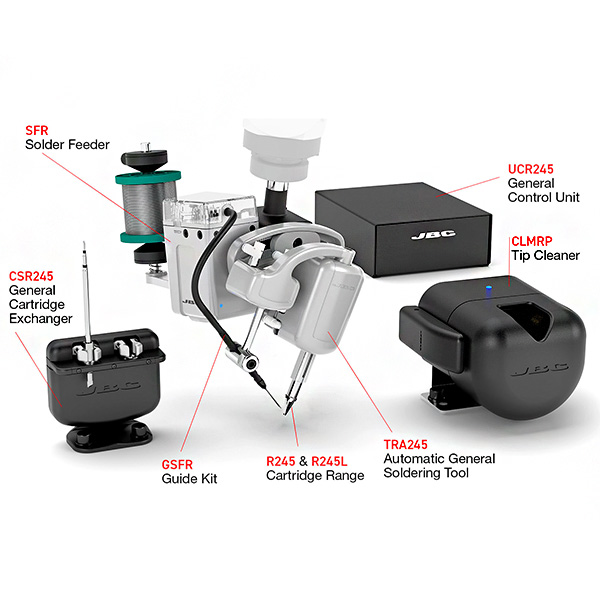

Products Included

1x TRA245-B Automatic General Soldering Tool for Robot
1x UCR245-5A General Control Unit for Robot
1x CSR245-B General Cartridge Exchanger for Robot
1 x SFR-B Solder Feeder for Robot
1 x CLMRP Tip Cleaner for Robot with Fiber Brushes (non metal)
More Information
General Specifications
SELECTABLE PARAMETERS
Selectable Temperature 90 to 450 ºC (190 to 840 ºF)
Solder wire length 0.5 to 250 mm / 0.02 to 9.84 in
Solder wire speed 0.5 to 120 mm/s / 0.02 to 4.72 in/s

SOLDER COMPATIBILITY
Wire diameter 0.5 to 1.5 mm / 0.020 to 0.062 in

ESD/EOS



ESD safe

Tip to ground resistance
<2 ohms


POWER SUPPLY

Peak power
160 W - 21 V
Ambient operating temp.
10 to 40 ºC / 50 to 104 ºF
