JBC HA470A-5B Robotic Soldering Unit
HA470A-5B Automatic Heavy Duty Soldering Set For Robot
The NEW JBC HA470 Soldering Unit for Heavy Duty Soldering makes available to the Electronic Industry the first selective soldering solution featuring Automatic Cartridge Exchange.
The New Automatic Soldering Iron TRA470, in combination with the Cartridge Stand CS2R470, features automatic cartridge exchange which allows the soldering robot using different tip geometries to get the Highest Soldering Quality and automatically changing the cartridges when the one being used wears out.
The Solder Feeder SFR, assembled on the RBA Soldering Head, includes solder wire perforation function, allowing flux flow and outgassing to minimize solder splashing.
The Tip Cleaner CLMR with its 50 mm (1.97") diameter brushes thoroughly clean the soldering tip in just 1 second increasing its heat transfer capacity.
To establish the communication between the UCR470 Control Box and a Robot (PC or PLC) JBC provides the RS232 Communication Protocol for UCR. Download at www.jbctools.com/jbcsoftware.html.
R470 Cartridges and Guide Tube Sets GSFR are not included but is required.
| HA Soldering Sets |
| HA245 Automatic General Soldering Set |
| HA470 Automatic Heavy-Duty Soldering Set |
Special Features
| Cartridge Compatibility | R470 Range |
| Automatic Cartridge Exchange | The TRA features automatic cartridge exchange which allows the soldering robot to use different tip geometries to attain the highest soldering quality. You can also automatically change the cartridge when the current tip is worn. |
| Solder Wire Perforation | Specific GSFR solder wire guide sets for flux core perforation are available. This allows for flux flow and outgassing to minimise solder splashing. |
| Fast, Gentle, Thorough Tip Cleaning | The tip cleaner (CLMR) with its 50mm (1.97") diameter, brushes the soldering tip clean in just 1 second. This helps to uncrease heat transfer capacity. Brushes are available with either metal or plastic bristles. |

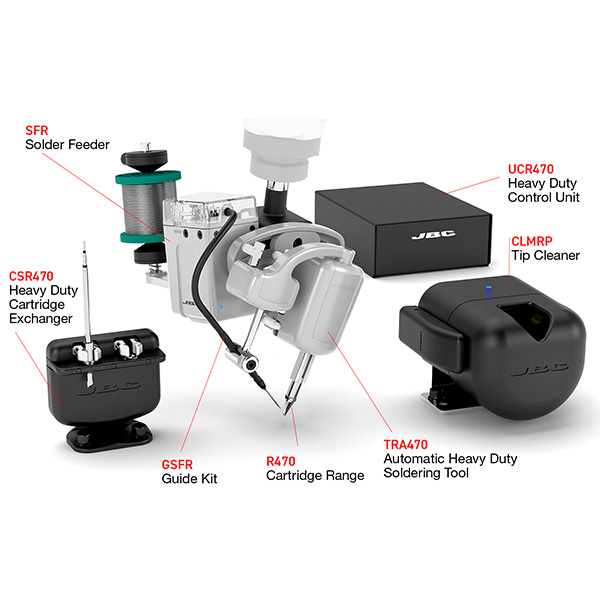

Products Included
| 1 x UCR470 Heavy Duty Control Unit for Robot |
| 1 x CSR470 Heavy Duty Cartridge Exchanger for Robot |
| 1 x TRA470 Automatic Heavy Duty Soldering Tool for Robot |
| 1 x SFR Solder Feeder for Robot |
| 1 x CLMRP Tip Cleaner for Robot with Fiber Brushes (non-metal) |
-
