JBC Heavy Duty Tweezers Station 230V
JBC Heavy Duty Tweezers Station 230V
The HDP has been designed to reduce the soldering time in applications that require a large amount of heatspan.
Applications suitable for this station include:
Coaxil cable shields soldering in telecommunication antennas
Soldering of large copper conductors in medical imaging scanners
Battery terminals
Large-size capacitors

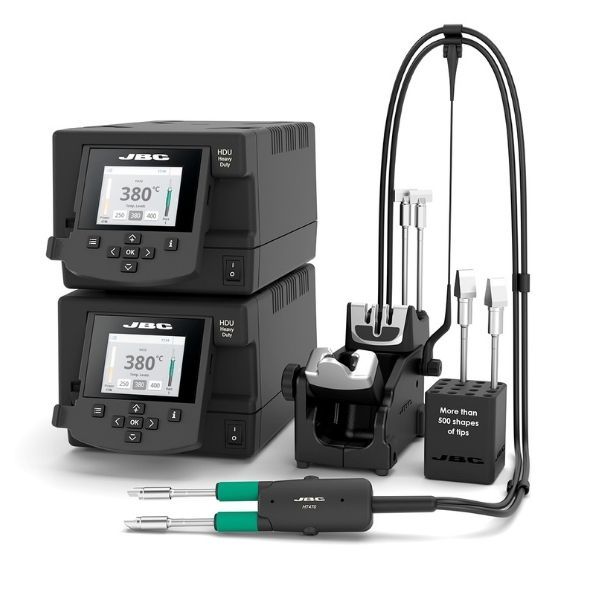

This station is supplied with 2 HDU Control Units and HT470 HD Thermal Tweezers which use C470 Cartridge Range .
The control unit features the JBC Exclusive Heating System and the Intelligent Sleep & Hibernation Modes to help extend tip life. Also allows direct connection to JBC Fume Extractors .
Product Composition
More Information
General Specifications
Selectable Temperature
90 to 500°C / 190 to 932°F
Idle temp. stability (still air)
±1.5°C (±3°F)
Meets and exceeds IPC J-STD-001F
Temp accuracy
±3% (using reference cartridge)
Temp adjustment
±50°C (±90°F) Through station menu setting
CONNECTIVITY
USB-B (rear)
Software PC / Traceability
USB-A (front)
Firmware update soldering graphics management
RJ12 Connector
ESD/EOS
Meets and exceed
Tip to ground vol./resist
ANSI/ESD S20.20-2014 IPC J-STD-001F
POWER SUPPLY
Peak Power
250 W - 42 V
Operating temp.range
10 to 50°C / 50 to 120 °F
DIMENSIONS & WEIGHT
Premium Stations
232 x 148 x 240mm/ 7.27kg
9.13 x 5.83 x 9.45in / 16.02lb
Package
585 x 512 x 220mm / 9.68kg
23.03 x 20.16 x 8.66 in / 21.33 lb
