JBC JTSE-2QA Hot Air station without extractor desk

JTSE-2QA - Hot Air Station Without Extractor Desk


This Unit Has Been Updated To The 415-JTSE-2QB. See New Product Here

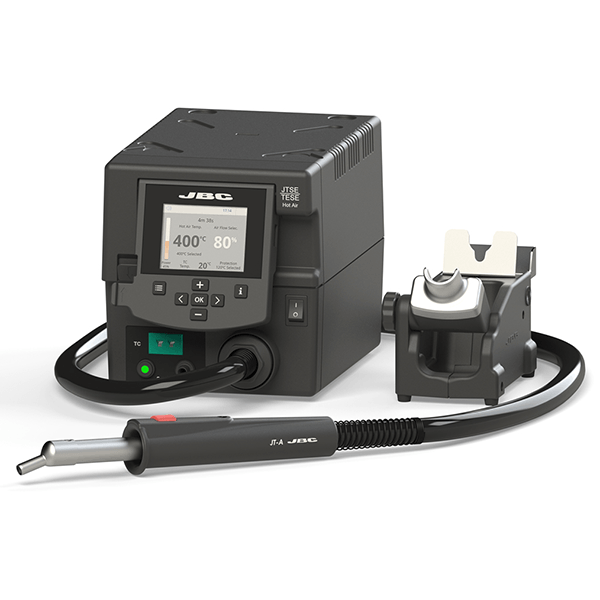

This JBC JTSE-2QA is a high powered hot air station for repairing all types of SMDs quickly and safely, including the biggest QFPs and PLCCs.

The exclusive combination of the JBC hot air system with the protractors/tripods/extractors, provides a safe and easy desoldering experience, consentrating the heat directly on the intended compomnent.

This unit comes without the extractor desk, see JTSE-2A for this to be included.





Benefits Of JT Hot Air Stations From JBC:

Two work modes
You can set the temperature values and air flow rate manually or by creating your own profiles (up to 25). The JT menu allows more than 10 parameters to customise the control unit.

Control thermocouple
Read the temperature at a specific point on the PCB with the control thermocouple. It helps
protect the components or a specific area on the PCB and provides greater precision when regulating the temperature.

Auto-stop function
A safety measure that ensures the heat is automatically cut off when the tool is in the JT-SD stand.





Desoldering With The JT Hot Air Station

Placing With The JTSE
Placing - Choose the extractor/ protractor/ tripod best fitting the component
Heating With The JTSE
Heating - Applying heat whilst protecting the components & other elements
Extracting With JTSE
Extracting - Automatic withdrawal of the desoldered component





JTSE-2QA Composition:

Product SKU Image
JTU Unit 415-JTSE-2UA
JT Heater Hose
415-JT-T2A
JN2015
415-0932015
JN2012
415-0932012
JN2020
415-0932020
JTS Stand
415-JT-SE
PH218
415-PH218
More Information
General Specifications
Selectable Temperature 150 to 450 ºC (300-840 ºF)
Air Flow 5 to 50 SLPM
Temperature Profiles Design specific thermal profiles to avoid thermal shock during soldering processes. Up to 25 fully configurable soldering profiles can be stored.
Operating Modes Heating/ Profiles/ Cooling
Vacuum
30% / 228 mmHg / 9 inHg
Connectivity

Type K Thermocouple
Can be used both for Control and Protection purposes.
USB-B (rear) Software PC
USB-A (front)
Firmware update, Graphics / Profiles management
Robot
RS-232 Remote Control
Pedal Optional Tool Control
Equipotential Bonding
Optional Connection To EPA
ESD Safe Yes
Power Supply
Nominal Power 700W
Ambient Operating Temperature
10 to 50 ºC / 50 to 120 ºF
Dimensions & Weight

Premium Stations 230 x 148 x 160 mm / 4.93 kg
Package 474 x 368 x 195 mm / 6.01 kg.
