JBC PSS Multi-Axis PCB Support | PCBs Up To 13 x 13cm

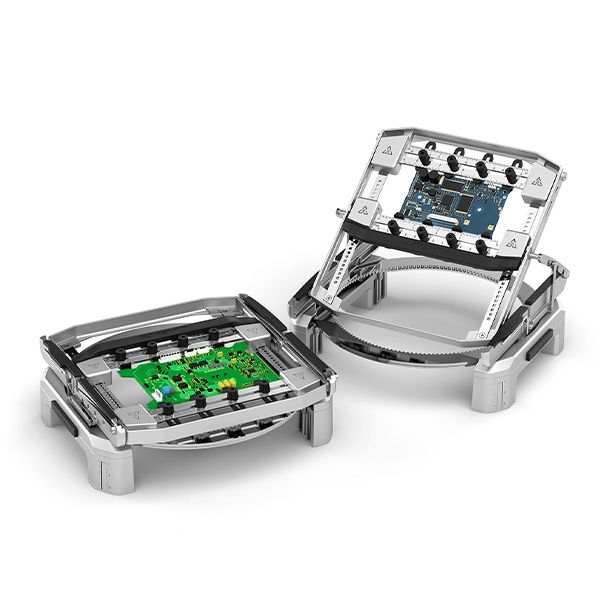

JBC PSS Support Multi-Axis Rotative For PCBs
Save time and optimise your workflow with the PSS PCB suppport.
Adapted from the current line of JBC PCB supports, the PSS is the new innovation that enables quick, precise PCB changes lik never before, ensuring proper positioning for repetitive soldering tasks. This support adapts perfectly to any type of PCB up to 130 x 130 mm / 5 x 5 in by means of its many adjustable elements.
Key Features
- Horizontal-axis swivel allows you to turn your PCB upside down (180∘) and choose among 4 different angular positions 25º, 35º, 45º and 55º.
- Vertical-axis swivel allows the positioning the PCB at any angle. It can be rotated in horizontal and inclined position.
- Provides up to 3 heights
Swivel Both Horizontally & Vertically
Horizontal Axis Swivel
Turn your PCB upside down (180º) with one movement. Choose between 4 different tilt positions - 25º / 35º / 45º / 55º.
Vertical Axis Swivel
Position your PCB at any angle. It can be rotated in any horizontal position required for your application.

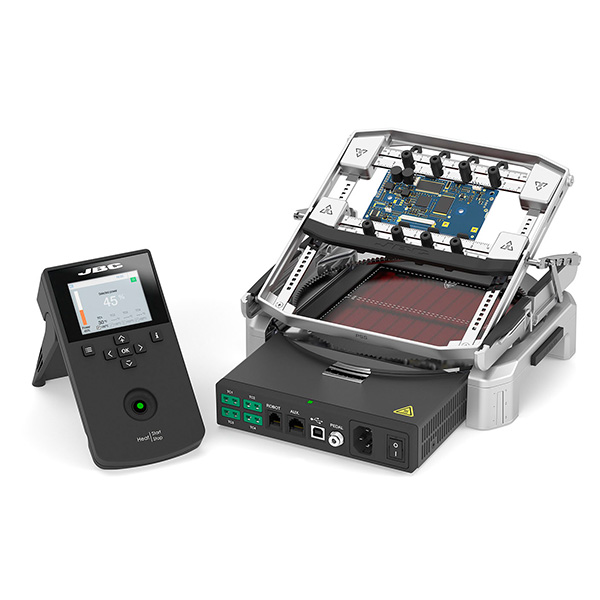

Works perfectly when combined with PHSK Preheater
