Discontinued
Sorry – this product is no longer available, although you may find similar or newer versions below:

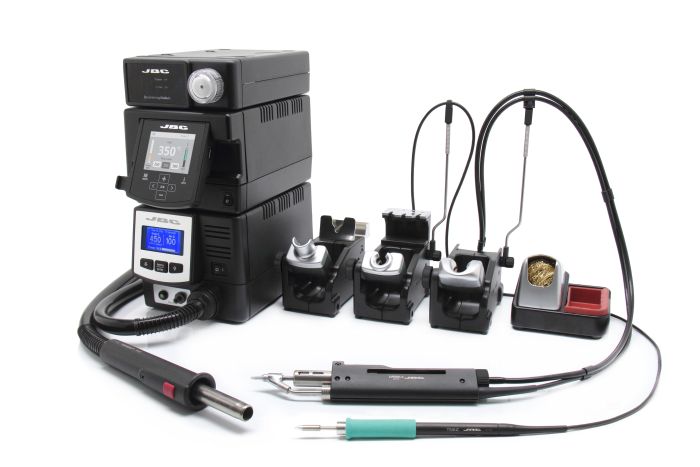

JBC RMVE-2A Complete Rework Station with Pneumatic Pump
Product Information:
The quickest and safest solution for soldering and rework, also using Hot Air.
More Information
General Specifications
Weight and Dimensions See individual modules
Voltage 120V / 230V / 100V
Output Peak Power JT :1000W / DDE:150W per tool
Temperature selection JT :150-450ºC (300-840ºF) or Cool mode: Temp Off
DDE : 90-450 ºC (190-840 ºF)
Idle Temp. Stability (still air) JT : ± 20 ºC (± 36 ºF)
DDE : ± 1.5 ºC (± 3 ºF)
Ambient operating temp. 10-40 ºC (50-104 ºF)
Air Flow Regulation JT : 6-45 SLPM / MVE: 15 SLPM
Air pressure 4-6 Bar
Vacuum JT : 30%/228mmHg/9inHg
Vacuum (at 6 Bar) MVE : 90%/680mmHg/26.8inHg
Tip to ground resistance DDE : <2 ohms
Tip to ground voltage DDE : <2 mV RMS
Communication connectors JT : USB-B
DDE : USB-A/USB-B/Peripherals
Robot connector DDE : RJ12 for RS-232 protocol
Pedal connection JT and MVE : P-005 Pedal
ESD Safe
Package weight 16.6 kg (36.5 lb)
Package dimensions 480 x 375 x 390 mm
