Discontinued
Sorry – this product is no longer available, although you may find similar or newer versions below:

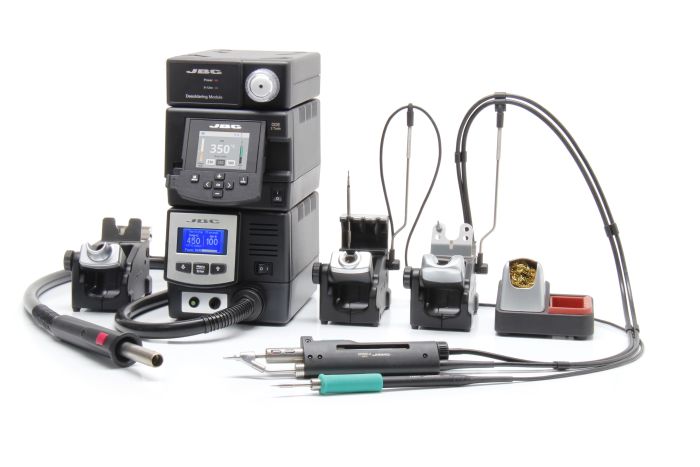

JBC RMSE-2C Complete Soldering Rework station with Electric Pump
This unit from JBC Soldering is by far the quickest and safest solution for soldering and rework, also including the use of Hot Air. It consists of stackable modules and all the necessary accessories to make your job easier. It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes. It features all of the Excellence range benefits and the JT-SD Stand that guarantees the Auto-Stop function when the heater is at rest. The RMSE works simultaneously with the DR560 Desoldering Iron , the T245 Handle, the JT-TA Heater Hose Set and is compatible with most JBC tools.
More Information
General Specifications
Weight and Dimensions See individual modules
Voltage 120 V / 230 V / 100 V
Input Fuse DDE:4A/ 2A/ 5A JT:8A/ 4A/ 8A
Output Peak Power DDE: 150 W per tool
Nominal Power JT: 700 W
Temperature selection JT: 150-450ºC (300-840ºF) or Cool mode: Temp Off
DDE: 90-450 ºC (190-840 ºF)
Idle Temp. Stability (still air) DDE: ± 1.5 ºC (± 3 ºF)
Ambient operating temp. 10-40 ºC (50-104 ºF)
Air Flow Regulation JT: 10-50 SLPM
Flow rate MSE: 9 SLPM
Vacuum JT: 30% / 228 mmHg / 9 inHg
MSE:75%/570 mmHg/22.4 inHg
Rated current JT: 6A/ 3A / 7A
Tip to ground resistance DDE: <2 ohms
Tip to ground voltage DDE: <2 mV RMS
Communication connectors JT: USB-B
DDE:USB-A/USB-B/Peripherals
Robot connector DDE: RJ12 for RS-232 protocol
Pedal connection JT and MSE: P-005 Pedal
ESD Safe
Package weight 16.6 kg (36.5 lb)
Package dimensions 480 x 375 x 390 mm
