JBC SF-210VA Automatic Solder Feeder

£665.00 (exc VAT) (£798.00 inc VAT)

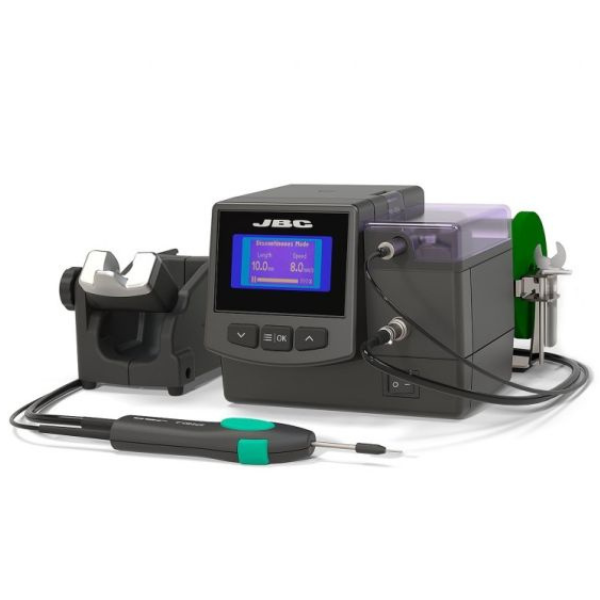

JBC SF-210VA Solder Feeder Station

Zoom Out
Zoom In

This solder feeder allows you to feed solder wire automatically from any position.

You can easily configure parameters such as speed and length of the dispensed wire. You can also monitor the consumption thanks to counters.

3 working modes: continuous, discontinuous and programs. In each program you can configure up to 3 steps with different lenght wire and dispensing speed. Execute cyclically up to 35 programs.

The solder feeder features a small blade that perforates the solder wire down to the flux core while feeding it. This perforation process
allows better flux flow and outgassing avoiding solder and flux splashing during the soldering process (also available without V-cut).

The ergonomic SF280-A Solder Feed Handle is compatible with solder diameters of Ø 0.8 mm, 1
mm & 1.5 mm (see guide sets).

Product Composition

  • Control Unit: SF Control Unit
  • Tools: SF280-A Solder Feed Handle
  • Accessories: GSF10V Guide set for SF280-A
  • View FileJBC SF Manual    Size: (2.82 MB)
    View FileJBC Automatic Solder Feeder Brochure    Size: (2.31 MB)
    View FileJBC SF Exploded View    Size: (3.05 MB)

    General Specifications

    Weight
    Dimensions
    Spool capacity up to 1 kg (2.2 Ib)
    Solder diameter Ø 0,8 mm (0.03 in) - 1 mm ( 0.04 in) - 1.5 mm (0.06 in)
    Voltage 100-120V / 0.2 A - 230V / 0.1 A
    Maximum speed 120 mm/s
    Ambient operating temp. 10-40 °C (50-104 °F)
    Communication connectors USB-B, peripherals, RJ12 for RS-232 connection
    Package weight
    Package dimensions
