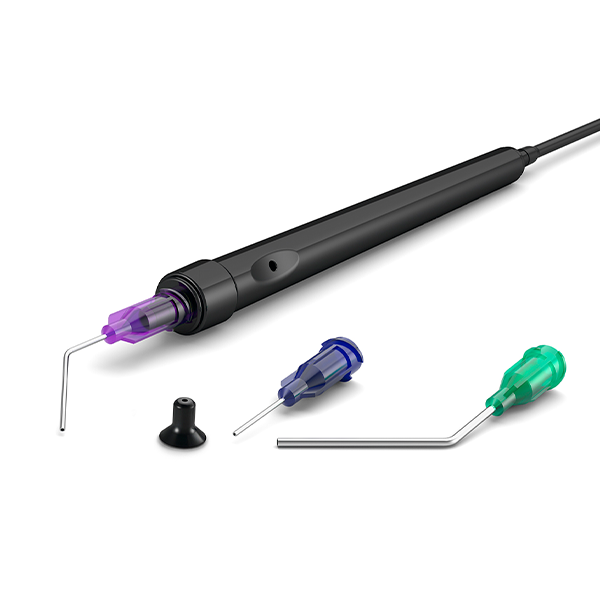

JBC - T260-A Pick & Place Handle
T260 - Pick & Place Handle
This tool helps you easily place and remove SMDs of different sizes. There are different cups to fit the size of any component.
It is connected to the suction plug on the Hot Air station.
When using JNA High-Precision Hot Air Station, its suggested to use NBC260 Bent Needles & Cups.
Take A Look At The T260 Being Used With The PK Pick & Place Unit
Working With T260 – A
When using the T260-A, the suction cups can be adjusted to the needles to suit the SMD and board size that is being worked on. This caters for adjustment to the specific weight and size of any component. When assembling the handle, ensure that the needle is not sticking out further than the lower part of the suction cup (see image).
T260-A Product Composition
1 x T260 Pick & Place Handle |
1 x NS260 Straight Needles For T260 |
1 x NB260 Bent Needles For T260 |
1 x CU260 Cups For T260 |
