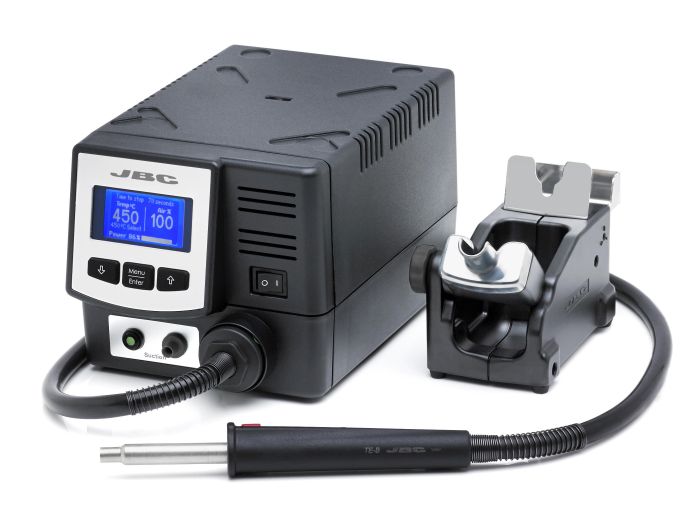

JBC TE-2QD Precision Hot Air Station Without Extractor Desk
TE is a precision hot air station for repairing small and medium SMD quickly and safely. The unit features two work modes - manual or program - to manage efficiently the temperature and the hot air flow. Using the menu you can personalize over 20 parameters to help manage the soldering process. The station works with the TE-TB heater and incorporates a USB connector (type B). It comes with a complete extractor desk and the TE-SD Stand that guarantees the Auto-stop function .
More Information
General Specifications
Weight 5.4 kg (11.9 lb)
Dimensions (Control Unit) 148 x 184 x 140 mm
Voltage(AC) 120V / 230V / 100V
Input Fuse 8A (120V and 100V) / 4A (230V)
Nominal power 300W
Temperature selection Room Temperature / 150-450 ºC (300-840 ºF)
Ambient operating temp. 10-40 ºC (50-104 ºF)
Air Flow Range 3-17 SLPM
Vacuum 30% / 228 mmHg / 9 inHg
Rated Current 3A (230V), 6A (120V), 7A (100V)
ESD Safe
Package weight 6.5 kg (14.2 lb)
Package dimensions 475x370x200 mm
