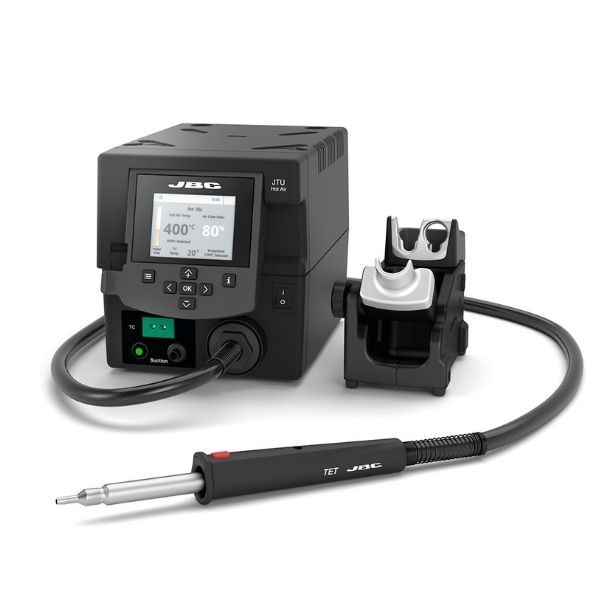

JBC TESE-2QB - Hot Air Station Without Extractor Desk
JBC TESE-2QB - Hot Air Station Without Extractor Desk
Upgraded from the TESE-2QA, now includes upgraded stand with easy nozzle changer.
This JBC TESE-2QA is a high powered hot air station for repairing all types of SMDs quickly and safely, including the biggest QFPs and PLCCs.
The exclusive combination of the JBC hot air system with the protractors/tripods/extractors, provides a safe and easy desoldering experience, consentrating the heat directly on the intended compomnent.
This unit comes without the extractor desk, see TESE-2B for this to be included.
Selectable Temperature - 150 to 450°C (300-840°F)
Air Flow - 2 to 17 SLPM
Benefits Of TE Hot Air Stations From JBC:
Two work modes
You can set the temperature values and air flow rate manually or by creating your own profiles (up to 25). The TE menu allows more than 10 parameters to customise the control unit.
Control thermocouple
Read the temperature at a specific point on the PCB with the control thermocouple. It helps
protect the components or a specific area on the PCB and provides greater precision when regulating the temperature.
Auto-stop function
A safety measure which ensures the heat is automatically cut off when the tool is in the JT-SD stand.
Desoldering Wit The TE Hot Air Station
Placing - Choose the extractor/ protractor/ tripod best fitting the component |
Heating - Applying heat whilst protecting the components & other elements |
Extracting - Automatic withdrawal of the desoldered component |
TESE-2QB Composition:
Product | SKU | Image |
JTU Unit | 415-JTSE-2UA | |
TET Heater Hose |
415-TE-TB
|
|
TN9209 |
415-TN9209
|
|
TN9208 |
415-TN9208
|
|
TN9080 |
415-TN9080
|
|
TES Stand |
415-TE-SF
|
|
PH218 |
415-PH218
|
