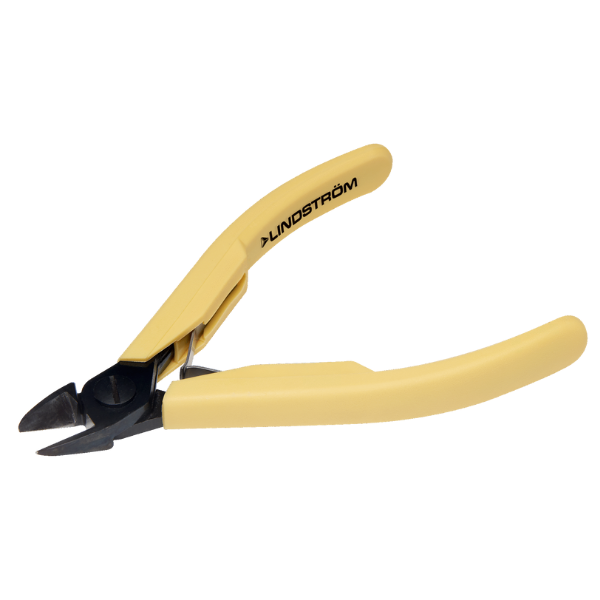

Lindstrom 8150 80 Series Oval Head Diagonal Micro Cutter 0.3-1.6mm
Tried and true performance for the traditional user
Unsurpassed cutting capacity covering wide range of wire dimensions and types
ESD safe, equipped with conductive or dissipative handles
Adjustable screw joint minimises friction and maximises alignment of cutting edges
Lead-catchers hold cut wires, preventing injury and keeping leads from flying into the assembly
Micro-bevel, flush or ultra-flush available
The Lindstrom 8150 80 Series Cutter (Oval Head) offers unsurpassed cutting capacity covering a wide range of wire dimensions and types. It is ideal for wire harness work and standard printed circuit board assembly.
Made from high performance alloy steel, the Lindstrom 8150 is ideal for high-stress applications and has a screw joint that minimizes friction and maximized alignment of cutting edges.
Numerically controlled machine grinding guarantees edge angle accuracy and contact, increasing the tools reliability and consistency.
The Lindstrom 8150 has ESD safe handles in synthetic material with return spring.
The edges are precision induction hardened to 63-65 HRC.
Cutting capacity 0.3mm - 1.6mm of copper wire with a Micro-Bevel® cut.
Limited lifetime warranty.
|Lindstrom Cutter Product Guide Size: (4.78 MB)|
|Lindström Electronics & Fine Mechanical Pliers Size: (137.82 KB)|
|Materials Cut||Copper Wire|
|Electrostatic Discharge Safe||Yes|
|110||10||0.2 to 1.25||8140|
|112.5||16||0.3 to 1.6||8150|
|125||16||0.4 to 2||8160|
