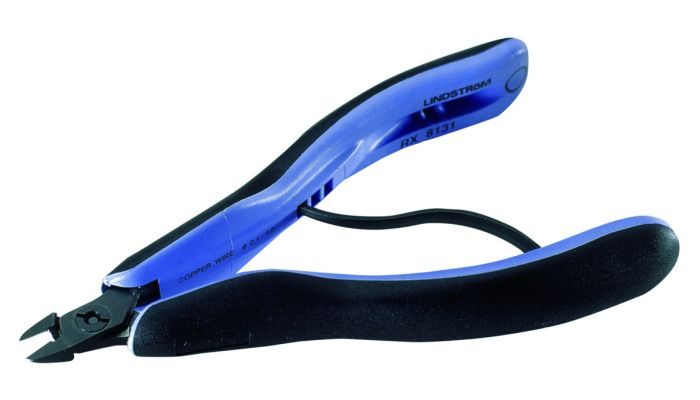

Lindstrom RX8140 Diagonal type Micro Cutter RX Oval Head 0.2-1.25mm wire dia
Product Information:
- The ultimate in performance, precision and comfort
- Profile slighly rounded and wide creating excellent surface distribution
- ESD safe
- Adjustable screw joint minimises friction and maximises alignment of cutting edges
- Lead-catchers stop just cut ends of wire from falling into critical or sensitive areas
- Micro-bevel, flush or ultra-flush available
- Precision cutters developed according to the scientific ERGO™ process
- Material: high performance alloyed steel
- Black finish
- Numerically controlled machine grinding guarantees edge angle accuracy and contact; increases the tools reliability and consistency
- Precision induction hardened edges 63-65 HRC
- Screw joint that minimizes friction and maximizes alignment of cutting edges
- ESD safe handles in two component synthetic material
- Biospring that limits the tension throughout the working cycle of the tool and can be adjusted in three different positions or removed
- Ideal for wire harness work and standard printed circuit board assembly
- The cutting capacity that is given is for copper wire!
Type | Overall length (mm) | Length of jaw (mm) | Width of head (mm) | Thickness of head (mm) | Cutting edge (mm) | Cutting capacity in copper wire (mm) | Cut type |
Rx8140 | 135.5 | 10.5 | 10.0 | 6 | 0.8 | 0.2 to 1.25 | Micro |
