P2-5 SAC305 88.5% 20-38 T4 No Clean Lead Free Solder Paste | 500g Tub | SolderKing
SK P2020 SAC305 88% 15-25 T5 No Clean | 500g Tub
This item is shipped directly from the manufacturer therefore is not eligible for free delivery.
P2-5 Solder Paste - 500g Tub
Alloy - SAC305
Solderking SK P2-5 is a no clean solder paste formulated for lead free surface mount assemblies requiring excellent, defect free soldering of even the most difficult to solder components and board finishes, including OSP, ENIG, Ag, Sn and HASL.
SK P2-5 leaves minimal clear, post reflow residue. Tested to Industry standards including J-STD 004B and Bellcore (ECM), solder paste residues can be considered safe to remain on an assembly when no-clean technology is appropriate to the assembly end-use.
It has been tested to industry standards, including J-STD 004B and Bellcore (ECM). Solder paste residues can be considered as safe to remain on an assembly where no-clean technology is appropriate to the assembly end-use.
SK P2-5 offers excellent print definition for fine and ultra-fine pitch printing and offers extended tack and open times in excess of three days.
Availability
P2-5 SAC305 can be available in both type 4 & 5 powder size.
Solderking manufacture all solder pastes within the UK - Speak to a member of our team should you have any bespoke solder paste requirements.
Check the availability below for P2-5:
| Flux | Packaging |
| P2-5 88% 20-38μm (T4) | 40g, 75g manual 40g, 75g automatic |
| P2-5 86% 20-38μm (T4) | 40g automatic |
| P2-5 88.5% 20-38μm (T4) | 250g/500g tubs 600g cartridges |
| P2-5 88.25% 20-38μm (T4) | 250g/500g tubs 600g cartridges |
| P2-5 88% 15-25μm (T5) | 250g/500g tubs 600g cartridges |
Benefits Of P2-5 SAC305 No Clean Solder
- High reliability solder paste flux type - ROL1 to J-STD 004B
- Reduces & eliminates voiding and head-in-pillow defects
- powerful wetting on all board finishes
- Shiny joint finish
- Clear minimal residue
- Long tack & open times
- 12 month refrigerated shelf life
- No clean
- Excellent print definition for fine & ultra fine pitch printing

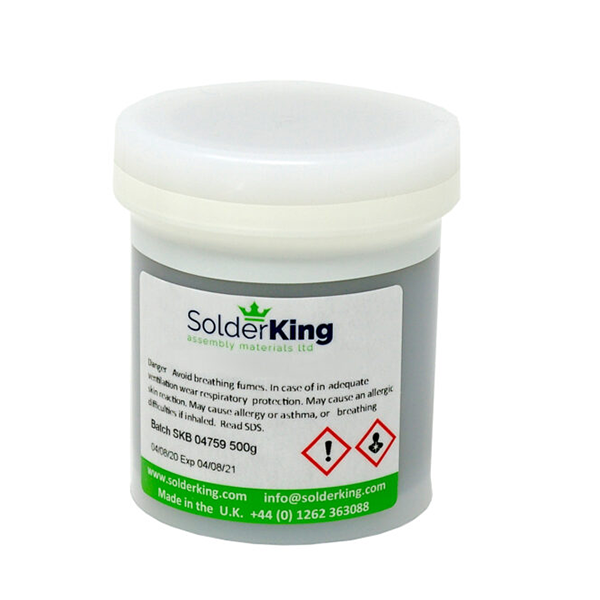

*Picture may not be of the actual product.
For more information on delivery options please contact your account manager or sales.
Sample for trial available upon request. Please contact the sales office:
Tel: 023 8065 0065 | Email: [email protected]
