P2020 SAC305 88% 15-25 T5 No Clean, Micro Connect Solder Paste - 500g Tub
SK P2020 SAC305 88% 15-25 T5 No Clean | 500g Tub
This item is shipped directly from the manufacturer therefore is not eligible for free delivery.
P2020 Solder Paste - 500g Tub
Alloy - SAC305
Formulated for lead free surface mount assemblies, Solderkings micro connect P2020 is a no clean solder paste. It offers excellent defect free soldering of even the most difficult to solder components and board finishes. This includes OSP, ENIG, Ag, Sn and HASL.
P2020 SAC305 leaves minimal clear, post reflow residue.
It has been tested to industry standards, including J-STD 004B and Bellcore (ECM). Solder paste residues can be considered as safe to remain on an assembly where no-clean technology is appropriate to the assembly end-use.
Availability
P2020 SAC305 can be available in both type 4 & 5 powder size.
Solderking manufacture all solder pastes within the UK - Speak to a member of our team should you have any bespoke solder paste requirements.
Check the availability below for P2020:
Flux | Packaging |
P2020 88% 20-38μm (T4) | 40g, 75g manual 40g, 75g automatic |
P2020 86% 20-38μm (T4) | 40g automatic |
P2020 88.5% 20-38μm (T4) | 250g/500g tubs 600g cartridges |
P2020 88.25% 20-38μm (T4) | 250g/500g tubs 600g cartridges |
P2020 88% 15-25μm (T5) | 250g/500g tubs 600g cartridges |
Benefits Of P2020 SAC305 No Clean Solder
- High reliability solder paste flux type - ROL1 to J-STD 004B
- Reduces & eliminates voiding and head-in-pillow defects
- powerful wetting on all board finishes
- Shiny joint finish
- Clear minimal residue
- Long tack & open times
- 12 month refrigerated shelf life
- No clean
- Excellent print definition for fine & ultra fine pitch printing

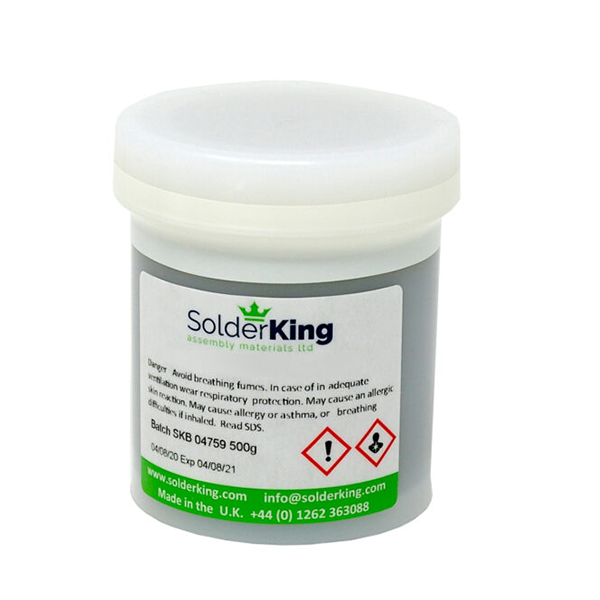

*Picture may not be of the actual product.
For more information on delivery options please contact your account manager or sales.
Sample for trial available upon request. Please contact the sales office:
Tel: 023 8065 0065 | Email: [email protected]
