P2020 Sn62 90% 20-38 T4 No Clean Leaded Solder Paste | 40g Manual Syringe | SolderKing

Micro Connect P2020 Sn62Pb36Ag2 20-38 T4 No Clean Leaded Solder Paste| 40g Syringe

This item is shipped directly from the manufacturer therefore is not eligible for free delivery.

P2020 Sn62 Leaded Solder Paste - 40g Syringe

Alloy - Sn62Pb36Ag2



Formulated for leaded applications that require excellent and defect free soldering, even the most difficult to solder components and board finishes - this includes OSP, ENIG, Ag, Sn & HASL.

P2020 Sn62 leaves minimal clear, post-reflow residue.

Tested to industry standards including J-STD 004B and Bellcore (ECM), solder paste residues can be considered safe to remain on an assembly, where no-clean technology is appropriate to the assembly end-use.

SK P2020 offers excellent print definition for fine and ultra-fine pitch printing and offers extended tack and open times in excess of three days.





Availability

P2020 Sn62 can be available in both type 4 & 5 powder size.

Solderking manufacture all solder pastes within the UK - Speak to a member of our team should you have any bespoke solder paste requirements.

Check the availability below for P2020:

Flux Packaging
P2020 90% Sn62Pb36Ag2 (T4) 40g, 75g manual
90% 20-38μm (T4) 40g, 75g automatic
250g/500g tubs
15-25μm (T5) 600g cartridges





Benefits Of P2020 Sn62 Leaded Solder Paste

  • High reliability solder paste flux type - ROL1 to J-STD 004B
  • Reduces & eliminates voiding and head-in-pillow defects
  • powerful wetting on all board finishes
  • Shiny joint finish
  • Clear minimal residue
  • Long tack & open times
  • 12 month refrigerated shelf life
  • No clean
  • Excellent print definition for fine & ultra fine pitch printing

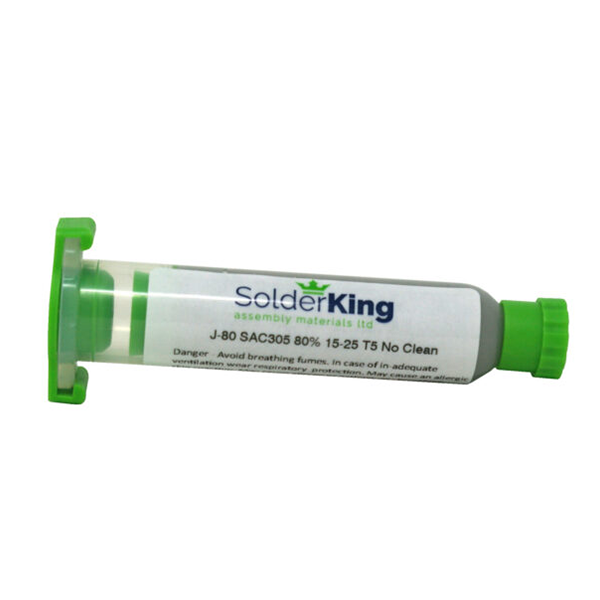

*Picture not be of the actual product.

For more information on delivery options please contact your account manager or sales.

Sample for trial available upon request. Please contact the sales office:

Tel: 023 8065 0065   |    Email: [email protected]

More Information
General Specifications

P2020 Sn62Pb36Ag2 20-38 Typical Batch Analysis

Flux Classification J-STD 004B ROL1
Malcom Viscosity 10rpm, 25°C, Pa.s 150-160
Slump J-STD 005A Pass <0.2mm
Metal Content J-STD 005A 90%
Tack Test J-STD 005A >3 days
Solder Ball Test J-STD 005A Pass
Quantitative Halide J-STD 004B <0.5%
Surface Insulation Resistance J-STD 004B Pass >100 MΩ
Electrochemical Migration J-STD 004B Pass
Electromigration Resistance GR78 Core Pass
Coppeer Corrosion 10 Day J-STD 004B Pass
Copper Mirror Corrosion J-STD 004B Pass
