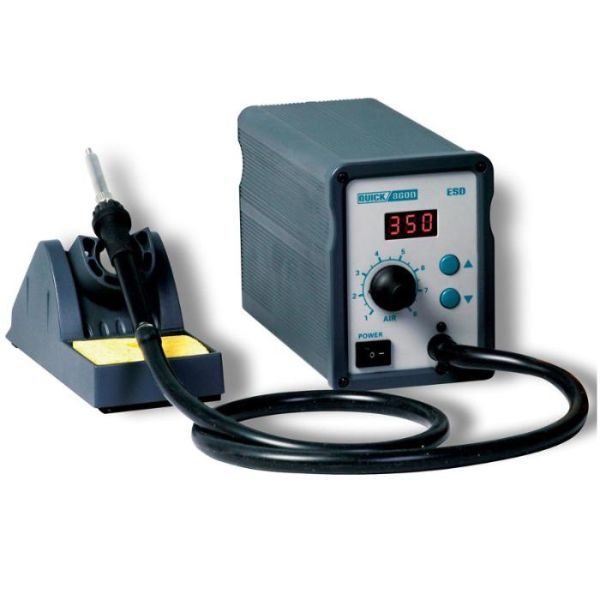

Quick 860DA Pencil Hot Air Rework Station - ESD

£135.00 (exc VAT) (£162.00 inc VAT)

Quick 860D Pencil Hot Air Rework Station - ESD

Zoom Out
Zoom In

Product Information:

  • Quick micro hot air pencil.
  • Closed loop sensor, zero triggering, micro computer controls temperature, LED display. Fast heating; Precise & stable temperature are not influenced by air volume.
  • With induction switch in the handle. When the handle is picked up, the unit starts working immediately; On the contray, the unit enters standby status automatically. Easy for real-time operating.
  • Light handle.
  • Digital temperature calibration, easy to operate.
  • Cooling air function available. It can prolong the life of heater and protect the unit.
  • Comes with the following nozzles: 1- 2mm I/D, 2- 3mm I/D, 1-4mm I/D & 1- 5mm I/D
  • Diaphragm Pump


Note there are no other nozzles for this unit

The Quick 860DA hot air rework station is ideal for reworking SMD components such as SOICs, ICs, QFPs. PLCCs and BGAs. With a temperature range of 100°C to 450°C and air flow of 0.3 to 6.8 litres per minutes, being produced through a range of small nozzle tips, makes this rework station ideal for desoldering small SMD devices.

The hand-piece is light and is fitted with an induction switch which starts the air and element heating when the hand-piece is picked up from the holder.

Adjustable temperature and airflow

Magnetic handle switch for quick response operation

LED display

Six supplied nozzles

View FileKaisertech Product Guide v.2.o    Size: (5.76 MB)

General Specifications

Specifications:
  • Power Consumption 120W
  • Display LED(resolution 1)
  • Pump Diaphragm
  • Air Volume 0.3-6.8L/min, stepless
  • Temperature Range 100-450
  • Heating Mode Ceramic heater
  • Dimensions 100(W)*210(L)*135(H)mm
  • Weight About 2.6kg
  • Noise 60dB
The stations have proved ideal for our application.
Quality
Price
Value
“We’re using them outside of their normal function as part of a heat staking operation.
I’ve been impressed by how robust they are and heat settings seem very stable, ergonomically they are also very good.
All in all a good product.

(Posted on 15/02/2018)
Great item, fast delivery
Value
Quality
Price
“Very nice little hot air pencil, just received mine and very happy, easily tackles discretes, tssop/tqfp and even a beefy d-pak.

Item is surprisingly nicely made and feels like good quality, comes with lots of tips. Buttons control temperature and dial controls airflow. Automatic shut off when placed in the holder works well.

Probably not what you want for reflowing a whole board using hot air but very nice and precise.

Also very quiet and doesn't rattle like many others.

Only issue is where to get spare elements and nozzles? ”
(Posted on 18/08/2017)
