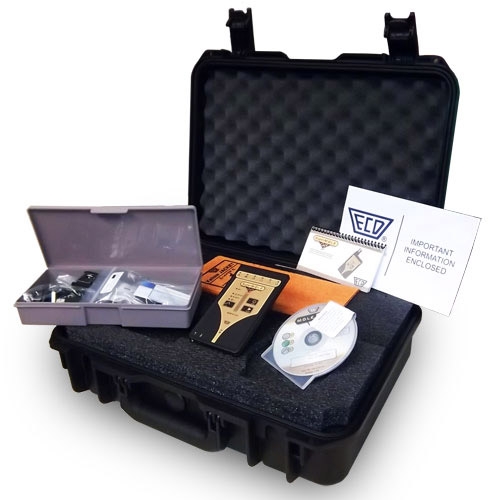

SuperMole Gold 2 Thermal Profiling Kit
ECD - Excellence in Measurement Solutions Worldwide
ECD or Electronic Controls Design Inc. is recognized worldwide for its leadership and expertise in thermal monitoring and analysis technology. Based in Milwaukie, Oregon, the company is a pioneer in the design, development, and manufacture of advanced thermal profiling systems and software used to monitor and analyze process temperatures in various industries including electronics, solar, baking, among others.

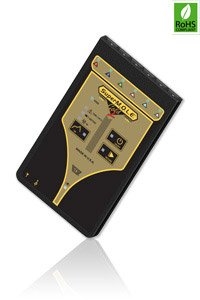

SuperM.O.L.E.® Gold 2
Smartest Profiler on the Planet
SuperM.O.L.E.® Gold 2 is a value-packed thermal profiling powerhouse relied upon for in-transit thermal process profiling. The advanced thermal profiling technology incorporates massive memory capacity and functionality with simple controls to enable thorough, yield-enhancing thermal process measurements.
Features

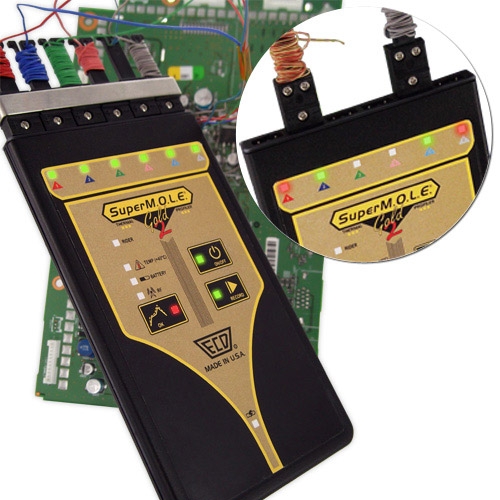

- Readiness Indicators:
- Power On
- Channels ready: Green, T/C OK; Red, T/C Open
- Low Battery
- Internal Temperature
- Recording
- RIDER Connected
- Battery Charging
- Patented OK Test Results: Go (Green) or No-Go (Red)*
- RF (option) Connection
- Nonvolatile Memory: Up to 96 Thermal Profile storage protects your profiles and allows convenient downloading on your schedule
- Auto Pallet Detect: Thermal Profiler automatically recognizes the series 2 “RIDER” machine test pallets
- Wireless Thermal Profiler: Optional built-in two-way RF is available
- Long life battery: Superior Lithium Polymer high capacity battery
- USB Interface 2.0: Fast upload, download and charge through USB
- Uni-Barrier/Yellow Jacket protection: Lead-Free soldering process compatible
- Separate On/Off and Record Buttons: Prevents accidental loss of profiles
Benefits
- Ensure Good Data, Extend M.O.L.E.® Life with Readiness Indicators.
- Save Time between Profiles: Nonvolatile Memory takes many profiles without a required download.
- No Complicated Programming: Auto Pallet Detect automatically programs the M.O.L.E. profiler and switches MAP software Environments at download time.
- On-the-Fly Process Adjustments: Wireless Thermal Profiler option allows data viewing in real time to adjust process as it happens.
- Never Lose a Profile: Separate On/Off and Record buttons prevent accidental profile loss.
- Efficiency: Long life battery allows all day profiling between charges.
- Convenience: USB Interface 2.0 provides simple single standard USB cable for communication and battery charging
Software
M.O.L.E.® MAP is ECD's software for setup, download, analysis, and data storage that powers the SuperM.O.L.E.® Gold 2 thermal profiler, the MegaM.O.L.E.® 20, the V-M.O.L.E.®, and the classic SuperM.O.L.E.® Gold.
.png)
Easy-to-Use
Five workflow Wizards will get you up and running in no time.
Flexible
Get the data you want, the way you want it. Step by step wizards guide you through selections for worksheet modifications and data table templates so you can display the information specific for your company’s process needs.
Process Focused
- Recipe Generator helps set an initial, in-spec profile oven recipe in three easy steps.
- Prediction tools to fine-tune a recipe - A great assist for recipe development means you can make quick adjustments to a profile.
