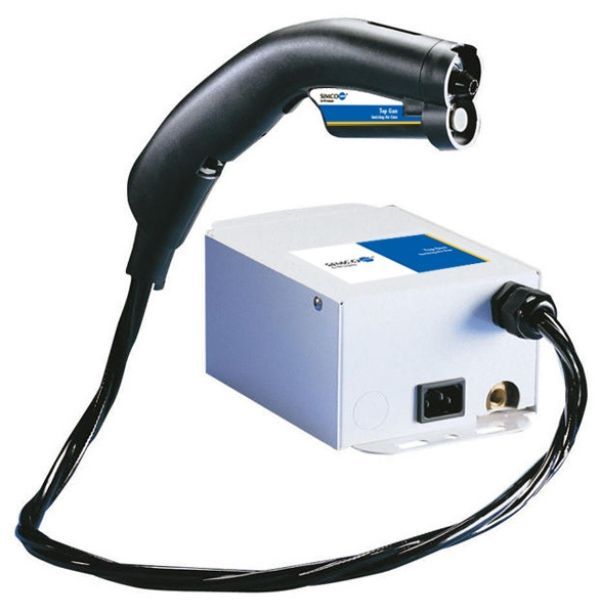

Simco Ionizing Blow-off Gun Top Gun 3, 7' Cable/Hose Assembly, 230V

Simco Ionizing Blow-off Gun Top Gun 3, 7' Cable/Hose Assembly, 230V



Powerful Static Removal Air Gun for Targeted Blow-off



Simco’s Ionizing Air Gun is high-performing and designed for a wide variety of applications. Balanced to 0±15V, the Top Gun features high blow-off force and low air consumption providing high efficiency cleaning and maximum static charge decay.





Features

  • Lightweight, Ergonomic Design
  • Flow Control Valve for Adjustable Airflow
  • Electrically balanced ion output
  • Integrated, Replaceable Filter-Nozzle
  • Ionization Indicator Light



Benefits

  • Maximum user comfort prevents operator fatigue and increases productivity
  • Airflow use that meets the specific application requirements
  • Protects ESD sensitive components and assemblies
  • Insures air contacting the target area is clean
  • Eliminates the guesswork of ionization at the target area



Applications

  • Flat-panel Display
  • Life Sciences
  • Electronics Manufacturing
  • Back-end Semiconductor Processing


Ideal for "Point-of-Use" Ionization. The lightweight & ergononic gun hose allows the operator to point the gun nozzle directly at the target on final electronic assembly stations. Strong blow-off power also effectively removes particle contamination.

More Information
General Specifications
Input Voltage 120 VAC, 60 Hz, 0.2A; 230 VAC, 50 Hz, 0.1A
Discharge 1.3 sec @ 6" (15.2cm), 30 psi (±1000-100V);0.5 sec @ 2" (5cm), 60 psi (±1000-100V)
Balance ±15V
Flow  2.4scfm @ 30 psi (68/min, 2 bar); 4.6 scfm @ 60 psi (130/min, 4 bar); 7.4 scfm @ 100 psi (210/min, 7 bar)
Blow-off Force 180g 100 psi 2" diameter target 3" from the gun
Air Pressue Pressure relief in nozzle complies with OSHA requirements
Audiable Noise 76 dbA @ 30 psi input (2 bar); 89 dbA @ 60 psi input (4 bar); 97 dbA @ 100 psi input (7 bar); measured 24" (600mm) from nozzle
Operating Env Temperature 32-104°F (0-40°C); humidity: 30-60% RH (non-condensing)
Ozone 0.001 ppm measured 18" (450mm) from gun, operation @ 15 psi (1 bar)
Filter 0.01 micron rating; replacement filters available
Gas Input 100 psi max; Clean Dry Air (CDA) or Nitrogen
Gas Connection 1/4" NPT (female)
Air Hose Static dissipative polyurethane, 7' or 14' standard, 5' or 14' with optical sensor (integral to gun and control module)
Enclosure Gun: Static dissipative polycarbonate/ABS blend; cable: static dissipative polyurethane
Dimensions 6.45"Hx5.20"Wx3.35"D (does not incl. flanges) (164H x 132W x 85D mm)
Weight Gun: 6.5 oz (185g); air hose: 1.25 ounces/ft (115g/m)
Warranty 2 year limited warranty



Control Module

Power 230 VAC, 50/60 Hz, .05A
Power Inlet IEC 320 with 400 mA SLO fuse
Pressure Maximum 100 psi Clean Dry Or Nitrogen (7 bar) 1/4" NPT connector, female
Dimensions 5.20"W x 6.45"H x 3.35"D (132 x 164 x 85mm)
Enclosure Powder-coated steel
Weight 6.5 lbs (2.7 kg)
