Summary Of The Updated Mantis Range

The updated range of the Mantis family includes 3 models, the PIXO, ERGO & IOTA. This gives you the ability to choose the best option for you.

Mantis IOTA (This Product)

• High-quality optical stereo imagery
• Ergonomic working positions
• Long working distance
• Magnification – 3x to 8x
• Interchangeable lenses
• Synchronised LED lighting

Mantis ERGO

• High-quality optical stereo imagery
• Ergonomic working position
• Long working distance
• Magnification – 3x to 15x
• 3 lens multi-view turret
• Dynamic 3D lighting - White/UV Options

Mantis PIXO

• High-quality optical stereo image
• Ergonomic working position
• Long working distance
• Integrated high-definition camera
• Video & image capture
• On-screen annotation
• Custom overlays
• Magnification – 3x to 15x
• 3 lens multi-view turret
• Dynamic 3D lighting – White/UV options

Versatility

The Mantis range has an overall magnification range of 3x all the way to 15x (see above each Mantis models magnification capabilities above). This provides superior image quality alongside a long working distance – making the Mantis range the perfect stereo inspection equipment for a wide-range of applications.

There are three versions of the 3rd gen Mantis (PIXO/ERGO/IOTA) which all have multiple stand and lighting options, allowing you to tailor the device directly to your requirements.

Faster Inspections

See every detail of your subject thanks to the unique and large viewing display. This means that the operator can assess samples at a quicker and more accurate rate and thus increasing both efficiency and throughput rate.

Both the PIXO and ERGO models have a built in triple objective turret. This lets magnification switches occur at a far easier and quicker pace.

Increased Comfort

The Mantis series has always been the pioneer for ergonomic perfection when using a stereo microscope. The eyepiece-less viewing provides ergonomic benefits to the operator superior to that of anything provided by other brands.

The designed-in ergonomics help to provide a more comfortable working position, whilst also maximising eye comfort, improving hand eye coordination and more. This enables the operator to work with magnification for longer periods of time in comfort!

Improved Accuracy

The 3rd generation of the Mantis now has 5 illumination options to help you maximise the control of shadows, which gives you the perfect sample view. This helps to ensure faults are easily detected and any rework tasks straightforward.

These illumination options include:

• Dynamic 3D
• Sub-stage, transmitted, diascopic
• Incident, episcopic
• Combined White/UV
• Contrast enhancing, pseudo dark-field

Suitable For A Wide Range Of Applications

The Mantis series of microscope is an excellent tool for a wide range of industries and applications. This is thanks to the long working distance and excellent depth perception. These industries include:

• Electronics
• Medical devices
• Precision engineering
• Life science & lab work
• Dental
• Watch & jewellery making
• Much more…

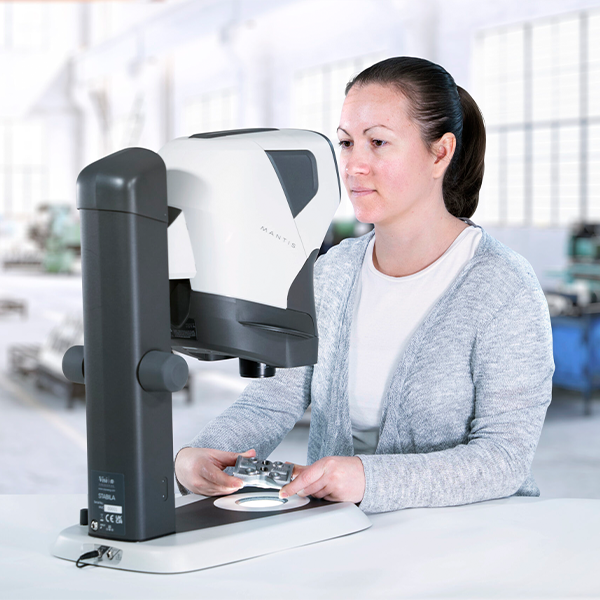

Stabila Stand - Counter sprung for ease of use. Compact, stable design & features long range of focus travel with an optional illuminated base.

Stabila Stand With Pilot Stage - 100 x 100mm travel stage with autolock to prevent unwanted movement.

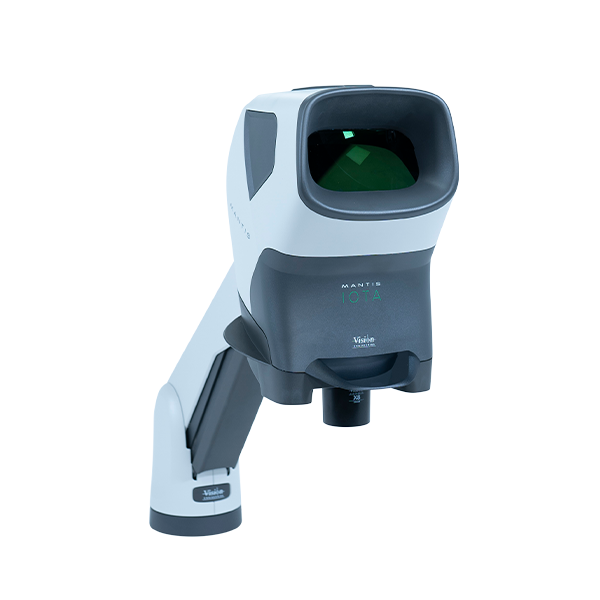

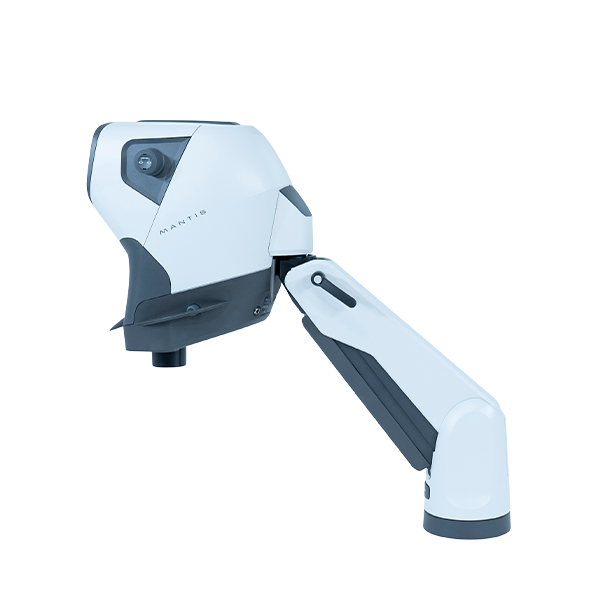

Verso Arm - Counter sprung for ease of use. Compact, stable design & features long range of focus travel with an optional illuminated base.

Verso Arm With Forearm - Adds extra stand reach with a pivot point on the verso stand. rotation 270°.

Pilot Stage – Smooth & precise control of subjects. 100 x 100mm travel stage with an auto lock to prevent unwanted movement

Contrast Enhancing Base – Helps to optimise lighting for a variety of both transparent and translucent samples. This aids in enhancing the observed contrast on the subject.

Tilting Base – Helps to change both the position and angle of a subject, without the need to handle it.
