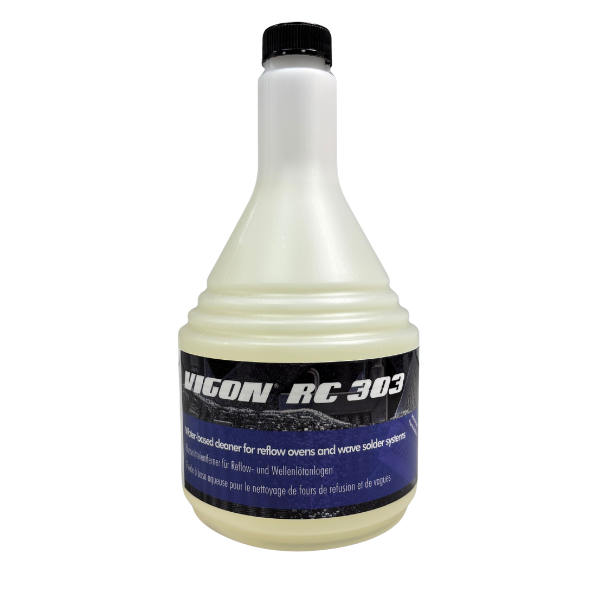

Zestron Vigon RC303 RTU

£22.00 (exc VAT) (£26.40 inc VAT)

ZESTRON VIGON RC303 RTU

Zoom Out
Zoom In

Reflow oven cleaner

  • VIGON® RC 303 was specifically developed to remove all types of baked-on flux residues from reflow and wave solder equipment. It reliably removes re-condensed fluxes and emissions from assemblies. The medium does not contain any ingredients which could leave residues on the oven surfaces. This avoids harmful condensation on the assembly surfaces after restarts

    As the successor to VIGON® RC 101, VIGON® RC 303 delivers an improved cleaning performance with the same high level of operator safety.

    Advantages compared to other soldering furnace cleaners:

    • Improved cleaning performance
    • Mild formulation, high operator safety
    • No flash point
    • Environmentally friendly
    • No special labeling is required
    • Little odor
    • Excellent material compatibility with aluminum and epoxy surfaces

    Advantages compared to other cleaning agents:

     Higher cleaning quality and process reliability

    o Improved cleaning performance

    o The medium does not contain any ingredients which could leave residues on the

    oven surfaces. This avoids harmful condensation on the assembly surfaces after

    restarts.

    o Excellent material compatibility with aluminum and epoxy surfaces

     Mild formulation

    o No flash point

    o High operator safety

    o Environmentally friendly

    o No special labeling is required

    o Little odor

     More efficient cleaning process to avoid long machine downtimes

    o Short soaking time due to advanced formulation

    o Can be applied directly onto cold or warm surfaces (20 - 50 °C / 68 - 122 °F)

    o Also suitable for the pre-cleaning of condensation traps

View FileVigon RC 303    Size: (257.54 KB)

General Specifications

Technical Data

Density (g/ccm) at 20°C/68°C 1,01

Surface tension (mN/m) at 25°C/77°F 31,8

Boiling range °C/°F > 99/ > 210.2

Flash point °C/°F None

pH-value 10g/l H2O 10.1

Vapor pressure (mbar) at 20°C/68°F Approx. 22

Cleaning temperature °C/°F 20 – 50 / 68 – 122

Solubility in water Soluble

Application concentration Ready-to-use Pure

HMIS Rating Health/Flammability/Reactivity 0 – 0 – 0

PRODUCT FEATURES

Extensively tested and suitable for

cleaning of lead-free solder pastes

Product is free of any critical

substances according to SIN &

SVHC lists

100% compliance with EU

guidelines (RoHS 1 & 2, WEEE)

Environmental, health and safety regulations:

 VIGON®

RC 303 is water-based and biodegradable.

 VIGON®

RC 303 is formulated free of halogenated compounds and is very

environmentally friendly and considered a non-hazardous material.

 No special precaution for handling VIGON®

RC 303 is required.





Availability/Storage:

 VIGON®

RC 303 is available as a ready-to-use solution in 1l spray bottles, 5l or 25l

containers and 200l drums.

 Store VIGON®

RC 303 in the original container at a temperature between

5 - 30 °C / 41 - 86 °F.

 The product has a minimum shelf life of 5 years in factory sealed containers.

Alternative product recommendation:

 For dip-tank cleaning of removable oven parts, i.e. condensation traps or solder frames,

we recommend ATRON® SP 200, ATRON® SP 300 or ATRON® SP 400.

 This also applies for extremely baked-on residues.
