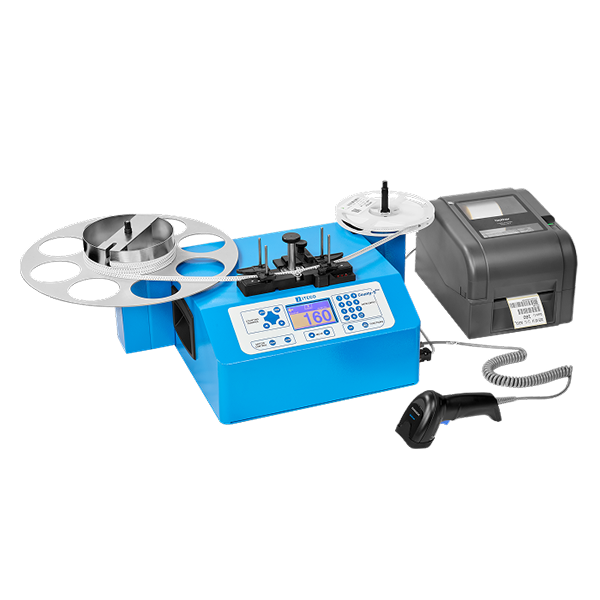

County-S EVO Component Counter

County-S EVO Component Counter



The County-S EVO is the perfect solution for taped SMD component counting. This machine operates by simply counting the holes on the tape.



Key Features:

  • Display: Blue LCD with led backlight 160x104 pixel, visable area 74x46mm
  • Adaptable speed control
  • Step by step mode (1 component at a time)
  • Empty pocket check (optional)
  • Barcode reader input
  • Serial connection for label printer or PC
  • Provides selection of up to 10 operators
  • Internal clock (1 week backup)
  • Datalogger that stores the last 500 counting data
  • Subtotals stored on memory
  • Simple transport with 2 side handles

Works in two different ways; Totalizer or Pre-set mode.

Totaliser: Components are totalled from a reference of zero, tape feed is motorised, and the counter automatically stops at the tape end, to prevent loss of the total.

Pre-set Mode: The required component amount is entered on the keyboard and the counter automatically stops when it gets to the corresponding component. The graphic display provides easy operation by the help of interactive messages.

Empty Pocket Check: Checks the presence of the component
Programmable Stop: Never - 1-2
It only works on Black plastic tapes



Always Visible In Count Screen:

  • Counting direction
  • Pitch number (holes per component)
  • Working mode (totalizer, preset or rewind)
  • Name of the operator
  • Components counted
  • Date & time or the last barcode





Other Variations:

Code Product
8301-131 County-s EVO 230V/50-60Hz
8301-133 County-s EVO 230V50/60Hz with empty pocket check



Optional Accessories Include:

Code Product
8301-350 ISO9000 Traceable Certificate
8301-150 Support For Reels > 400mm diameter
8301-021 Empty Reel aluminium made, 360mm diameter
8301-155 Barcode with coiled cord
8301-095 Direct thermal label printer
8301-096 57x51mm 1360 labels/roll
More Information
General Specifications
Maximum Counting Value 999999 counts
Maximum Counting Speed 220pcs/sec (1 piece for hole)
Pitch (Holes For Component) from 1/4 - 1/3 - 1/2 - 1 - 2 - ... - 19
Maximum Tape Height 56mm
Maximum Reel Diameter 400mm (standard configuration), 650mm (with 8301.150 support)
Display Blue LCD with LED backlight - 160x104 pixels
Visible Area 74x46mm
Accuracy ±1 piece
Holes Per Component divider from 1 - 99 (and multiplier 2,3,4 for 0402, 0201 and 01005 components
Dimensions 525 x 340 x 250(H) mm
Weight 9.5kg
