Hios CL-7000 Electric Screwdriver - Lever Start | 0.3 - 2.5Nm

£425.00 (exc VAT) (£510.00 inc VAT)

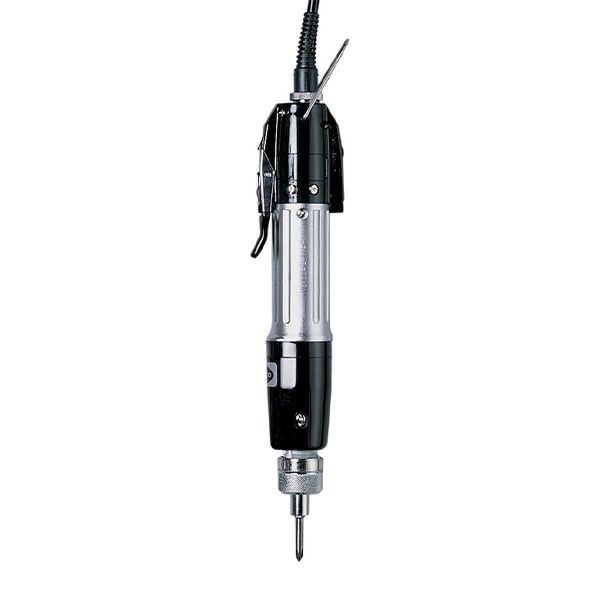

HIOS CL-7000 Electric Screwdriver

Zoom Out
Zoom In

Product Information:

Well suited for many kinds of operations requiring a wide range of torque values

This screwdriver has been a long-selling product thanks to its operability, reliability and stability.
With low DC voltage these screwdrivers can be used safely.
The grip design helps operators to reduce fatigue caused by long hours of operation.

  • Straight trigger start electric and reversible screwdrivers
  • External torque adjustment
  • Auto shut off
  • Output Torque Range: Nm 0.3 - 2.5, lbf in 2.6 - 22, (kgf cm) (3 - 25)
  • Speed 750rpm
  • Screw Size: Small Screw Size 2 - 5mm Tapping Screws 2 - 4mm
  • Torque setting stepless
  • 1/4 Hex Bit

*For our larger range of Hios drivers visit Kindustrial.


Output Torque Range N・m 0.3-2.5
lbf・in 2.6-22
kgf・cm 3-25

Suction (Vacuum) attachments are available for this unit

(A) Mouthpiece model(B) Bit length(C) Suction attachment model
F6-Standard31mm H5 80mm
  • CLQ65-SET
  • CLQ65-SET-ESD
View FileHios CL Series Operation Manual    Size: (460.99 KB)

General Specifications

Start Lever Start Type
Output Torque Range N・m 0.3-2.5
lbf・in 2.6-22
kgf・cm 3-25
Torque Switching Stepless Adjustment
Unloaded Rotation Speed(r.p.m) High 750
Screw Size(mm) Screw size 2-5
Tapping 2-4
Bit (selectable)※ Hios shank H5
Hex shank 1/4HEX or 5HEX
Power Supply Model T-45BL
T-70BL
External Dimensions(mm) Grip 37
Length (mm) 255
Accessories Bit:
H5

+#1(φ5.0×60mm)

+#2(φ5.0×60mm)

1/4HEX +♯1 (5.0×50mm)
+♯2 (5.0×50mm)
- (5.0×50mm)
Spring Yellow
Cord length(m) 2m(5p)
Carbon brush order code CL65-0490(1pair)
Torpue Range Table
