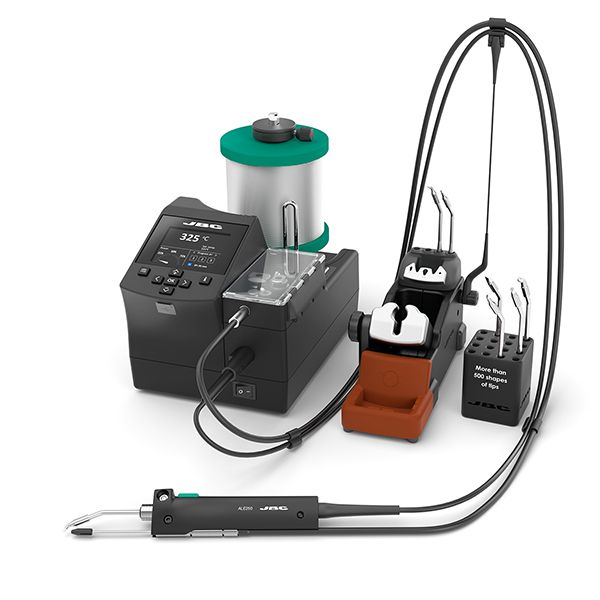

JBC ALE Auto-Feed Soldering Station

Auto-Feed Soldering Station – ALE-210VA



Your perfect solution for soldering applications that require a free hand.

The ALE is programmed to feed the precise amount of solder that you require, making it the perfect station for repetitive soldering work on the production line.

Parameters can easily be configured to your requirements, including the speed and length of the dispensed wire. Solder consumption can also be monitored thanks to the integrated counters on the station.

Check Out The ALE Auto-Feed Solder Station In Action

Benefits Of Using The ALE Auto-Feed Solder Station

Continuous - Mode 1
The operator can manually control the amount of solder being fed, all at a constant speed. This is ideal for applications where solder joints require differing amounts of tin.

Discontinuous - Mode 2
Programme the speed and amount of solder that will be automatically dispensed on each click of the handpiece. Perfect where your soldering tasks involve repetitive action.

Program - Mode 3
Up to 5 custom programs, with 3 different steps, making your process more dynamic and efficient. Ideal for tasks requireing pre-tinning/a controlled feed of tin at differing speed.

Solder Wire Perforation

The ALE has small blades in the feeder that perforate the solder wire down to the flux core.

This process caters for better flux flow and outgassing, whilst also avoiding the solder and flux from splashing whilst you solder.

Increased Productivity

The ALE can carry out different soldering tasks within just a few stations, no need to switch the station off. You can easily switch between and reload solder wire, with a max weight capacity of 2kg per reel. Included with the station are all the tools that you would require to change and align the cartridges.

Connectivity & Ease Of Use

Setting up and working with the ALE is simple thanks to its easy to use 7-key keypad. Other JBC devices and accessories can be used with the ALE station to achieve the best soldering results. This includes the FAE Fume Extractors and JBC Pedal.

Intelligent Heat Management

As with all JBC tools, the ALE includes JBCs intelligent heat management system. This includes an extremely quick temperature recovery - reaching 350°C in under 4 seconds. Read more about this heat management system here.

Upgraded Stand

The ALE includes JBC’s new range of upgraded stands. These include a Tip Cleaner with brass wool, aiding in the prevention of oxidation between cleaning and rewetting. Also there is an antisplash membrane to keep your work area clean. You can also store up to 4 cartridges in the stand.

Compatibility For The ALE Auto-Feed Soldering Station

Product Composition

More Information
General Specifications
Handpiece Compatibility ALE250 Auto-Feed Iron
Cartridge Range C250 Range
Job Type General Purpose
Output Peak Power 150W
Temperature Range 90-450ºC
Ambient Operating Temp 10-50ºC
Idle Temp. Stability (Still Air) ±1.5ºC
Temp. Accuracy ±3%
Temp Adjustment ±50ºC
Tip To Ground Voltage/Resistance Meets and exceeds
ANSI/ESD S20.20-2014
IPC J-STD-001F
Earthing Fuse F 1.25A
Solder Wire Diameter 0.4-1.8mm
Max Wire Length 250mm
Min Wire Length 0.5mm
Forward Speed Range 0.5 to 50 mm/s
Speed Of Reverse Function 0.0 to 5.0 mm/s
Number Of Programs 5 Programs
Number Of Program Steps 1 to 3 Steps per program
Max Reel Weight Up to 2kg
Max Reel Diameter 100mm
Max Reel Height 100mm
