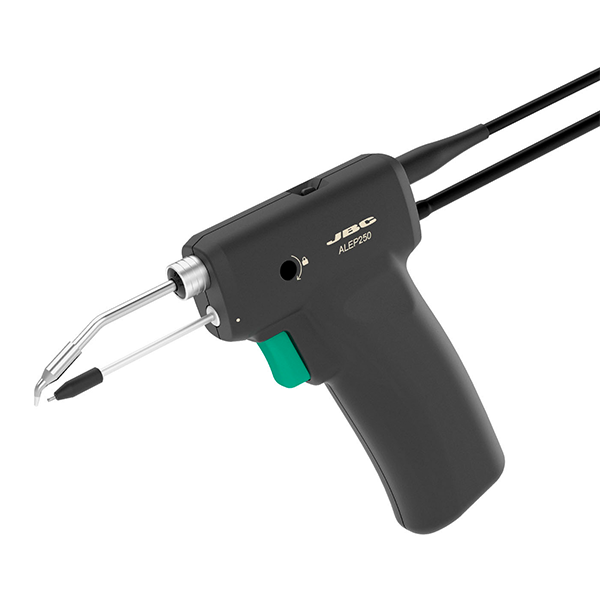

    JBC ALEP Station - Automatic-Feed Soldering Station With Angled Tool ALEP250

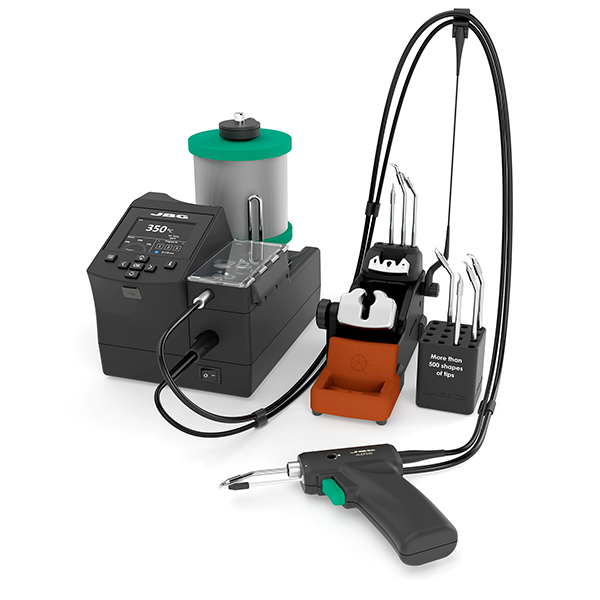

    main product photo
    Specification
    More Information
    MPN
    ALEP-210VA
    General Specifications
    Nominal power 180W
    Peak power 150W
    Selectable temperature 90 to 450ºC
    Idle temp stability (still air) ± 1.5ºC (meets and exceeds IPC J-STD-001)
    Temperature accuracy ± 3% (using reference cartridge)
    Temperature adjustment ± 50ºC (through station menu settings)
    Connections USB-A update and files import/export
    USB-B software PC
    RJ12 fume extractor connection
    Equipotential bonding Optional connection to EPA
    Tip-to-ground resistance <2 ohms
    Tip-to-ground voltage <2 mV RMS
    ESD safe Meet ANSI/ESD S20.20
    Solder wire diameter 1.0 mm / 0.04 in with GALE10V already assembled
    Max wire length 250 mm / 9.84 in (for discontinuous + program mode)
    Min wire length 0.5 mm / 0.02 in
    Max forward speed 0.5 to 50 mm/s / 0.02 to 1.97 in/s
    Max backward function 0.0 to 5.0 mm/s / 0.5 to 0.2 in/s
    Programs 5 Programs
    Program steps 1 to 3 Steps (for each program)
    USB-A Firmware update
    Graphics and profiles
    USB-B PC communications
    Pedal connector Tool control


    Compatible Solder Reel

    Weight Up to 2kg
    Diameter Max 100mm
    Height Max 100mm
    Reel stand axis Ø 10mm


    Weight And Dimensions

    Automatic feed 235 x 170 x 112mm / 7.83kg
    Package 545 x 345 x 275mm / 8.5kg
