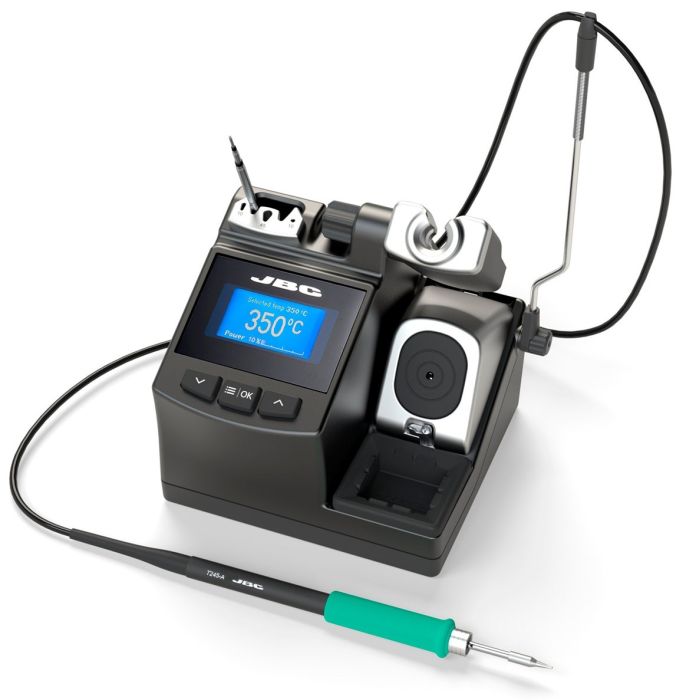

JBC CD-2BE General-Purpose Soldering Station with T245 Handpiece

JBC CD-2BE General-Purpose Soldering Station with T245 Handpiece



All orders will be automatically upgraded to the latest JBC CD-2BF


The CD-B Soldering Station comes with the lightest and ergonomic T245 Handpiece.



It is compatible with a vast range of over 150 C245 cartridges with options to suit any application.



The CD-B is a soldering station with the JBC Advanced system for general electronic applications.

It provides the best soldering quality thanks to the JBC exclusive heating system and the intelligent sleep & hibernation features that extend the life of the tips by 5x.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It features a USB connector to update software, create graphs and manage parameters from a PC.

Complete cleaning system with an antisplash membrane to keep the work area clean. Use the integrated wiper to remove excess solder from the tip. The Cartridge extractor facilitates fast and safe cartridge changes.

Product Composition

1 x CD-2EK with Tip Cleaning system
1 x T245-A General Purpose Handle
Cartridges: C245-741, C245-903
Consumable: S0354CL6210



This model replaces the discontinued CD-BD model

More Information
General Specifications
Selectable Temperature 90 to 450°C/190 to 840°F
CONNECTIVITY
USB-B Software PC / Firmware update
Equipotential bonding Optional connection to EPA
RJ12 Connector
Earthing Fuse F 1.25A
ESD/EOS
ESD safe
Tip to ground vol./resist

Meets and exceed

ANSI/ESD S20.20-2014 IPC J-STD-001F

POWER SUPPLY
Peak power 130W - 23.5 V
Operating temp. range 10 to 50°C / 50 to 122 °F
Solder wire diameter
DIMENSIONS AND WEIGHT
Compact Stations

170 x 176 x 145 mm / 2.74kg

6.69 x 6.93 x 5.71 in / 6.04 lb

Package

234 x 234 x 258 mm / 3.34kg

9.21 x 9.21 x 10.16 in / 7.36lb



Write Your Own Review
You're reviewing:JBC CD-2BE General-Purpose Soldering Station with T245 Handpiece
Your Rating
Customer Questions
Can the JBC CD-2BE connect via USB to a PC?

Yes, all of the JBC CD-2BE soldering stations we sell come with a USB connector. This will allow you to control the station using the JBC Open Manager software, recording temperature gradients and more. Another benefit is that you can ensure your soldering station is always has the latest update installed, with the JBC Updater Software ensuring this!

Can I use a tweezer handpiece with the JBC CD stations?

Unfortunately, no. You would not be able to plug a tweezer handpeice into this station as the connection point is a different shape. If the application that you are undertaking requires the use of a tweezer handpiece, please see either the CP stations or NASE-2C.

Did you find what you were looking for?

JBC CD-2BE General-Purpose Soldering Station with T245 Handpiece

SKU
415-CD-2BE
The CD-2BE is a soldering station for precision electronic applications
