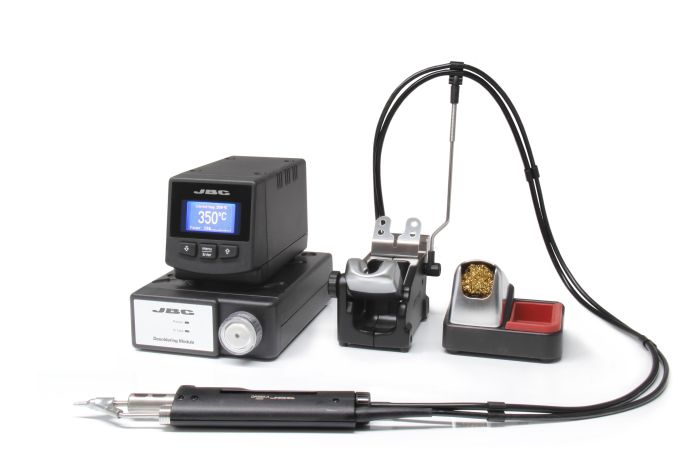

JBC DIV-2D Desoldering station with Pneumatic Pump

This station allows you to desolder insertion components and to clean circuits with SMD.

The MV suction module offers the best results using a Venturi valve. This system requires available compressed air at the operator´s bench.

It works with the JBC Exclusive Heating Systemand the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The USB connector allows to update software, create graphs and manage parameters from a PC.

This station works with the comfortable DR560 Desoldering Iron and C560 tips.
More Information
General Specifications
Weight 5,6 kg (12.3 lb)
Size See individual modules
Voltage(AC) 230V / 120V / 100V
Input Fuse 1A (230V), 2A (120V), 2.5A (100V)
Output Peak Power 130W / 23.5V
Temperature selection 90-450 ºC / 190-840 ºF
Tip to ground resistance <2 ohms
Tip to ground voltage <2mV RMS
Ambient operating temp. 10-40 ºC / 50-104 ºF
ESD Safe
USB interface station-PC
Air pressure 3 - 6 Bar
Vacuum 90% / 680mmHg / 26.8inHg
Flow rate 15 SLPM


Package weight 6,5 kg (14.3 lb)
Package dimensions 370x370x200 mm

Write Your Own Review
You're reviewing:JBC DIV-2D Desoldering station with Pneumatic Pump
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?

JBC DIV-2D Desoldering station with Pneumatic Pump

SKU
415-DIV-2D

Used for desoldering through hole components, cleaning pads and removing solder from smt devises.
