JBC Fume Extractor Kit 1 FAE1 - For 1 Workbench

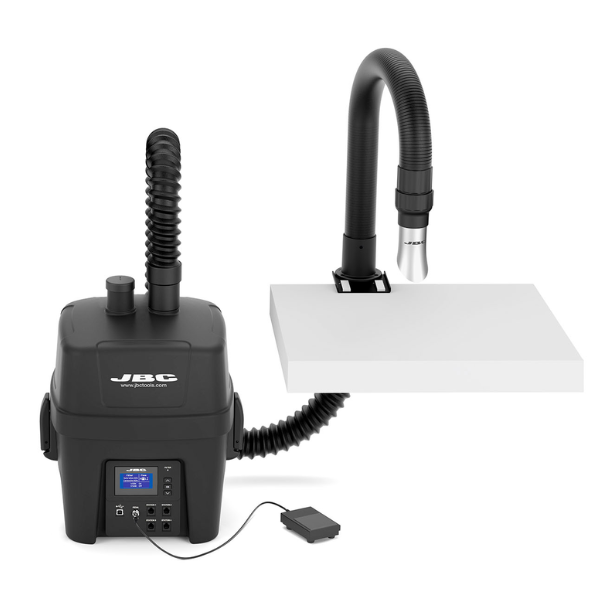

JBC Fume Extractor Kit 1 FAE1
The FAE1 is the most effective solution to avoid exposure to solder fumes in the working environment. The extractor activates and operates only when soldering. This function saves power and the life of the equipment as well as the filter.
The system also detects when the tool is at rest and automatically absorbs the fumes. This is thanks to a vacuum system integrated into the stand.
This Fume Extractor provides direct connection of up to 4 soldering or rework stations and stand fume extractions for up to 4 tools.
Can be controlled via JBC stations, a pedal, a robotic system or a PC.
It has 3 predefined levels of aspiration: low, medium and high, and a custom mode with which you can set the airflow within the low (10%) and max rates (100%).
Key Features:
- Provides connection of up to 4 soldering or rework stations.
- Has 3 predefined levels of aspiration; low, medium and high.
- Detects when tool is at rest and automatically absorbs the fumes.
Watch the FAE1 Fume Extractor in action here.
Product Composition
1 x Fume Extractor for 1 workbench
1 x Flexible Arm with clamp
1 x Flexible Hose
1 x P405 Pedal
Other Versions Of JBC Fume Extractors
Fume Extraction For Up To 8 Tools (4 Per Workbench)
