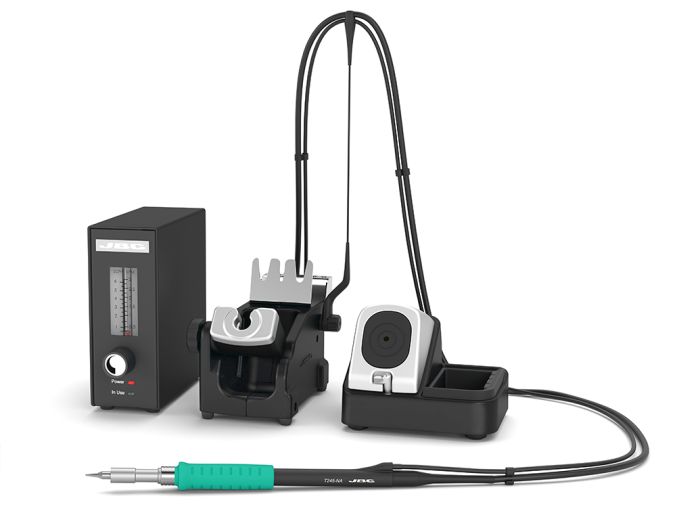

JBC KNE-A Nitrogen Kit for DDE & DME
This is the ideal solution for improving the quality of any solder joint by using nitrogen as it provides extra heat and helps prevent tip oxidation.
The nitrogen flow is automatically activated when you remove the T245-NA nitrogen handle from
the stand. It stops when the tool is placed back and the tip temperature drops to the sleep mode.
This kit requires the GN-A nitrogen generator or an available nitrogen supply at the operator´s bench.
The KNE-A works with DDE or DME control units.
Weight 3.712 kg (8.18 lb)
Size See individual modules
Voltage (AC) 24V (from control unit)
Power 3 W
N2 pressure range supply 3-5 bar
Max. pressure 6 bar
N2 flow regulation 0.5 - 3 SLPM
Recommended N2 flow 1-2 SLPM
Ambient Operating Temp. 10-40 ºC / 50-104 ºF
Package weight 4.194 kg (9.24 lb)
Package dimensions 280 x 280 x 143 mm
